Description

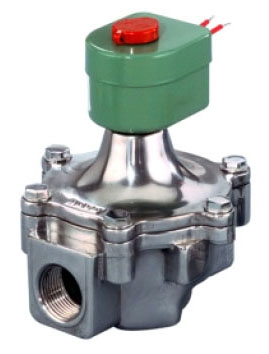

- Solenoid Valve
- Type 2-Way, Direct Acting / Electrically / Piloted Operated
- Port Connection 2 Inch Threaded x 2 Inch Threaded
- Valve Position NO
- Body Material Aluminum
- Enclosure Type NEMA 1/2 / 3/3S / 4/4X, RedHat II
- Input Supply Rating 120 Volt AC at 60 Hertz, 110 Volt AC at 50 Hertz
- Temperature Rating 125 Deg F AC / 104 Deg F DC (Fluid)
- Pressure Rating 0 to 25 PSI AC / 0 to 15 PSI DC (Air / Fuel Gas)
- Mounting Details Vertical / Upright Installation
- Media Handled Air, Fuel Gas
- Inclusions / Features Lightweight, Low Cost, NBR Diaphragm / Seal / Disc, Disc Holder, POM Core Guide, 305 Stainless Steel Core Tube, PTFE Rider Ring, 430F Stainless Steel Core and Plugnut, Copper Shading Coil, Orifice
- Application Air and Vacuum Service
- Applicable Standard UL, CSA (Canada and US), CE, FM
- Cv Value 58
- Power Rating 15.4 Watt (AC)
- Insulation Class Type F
