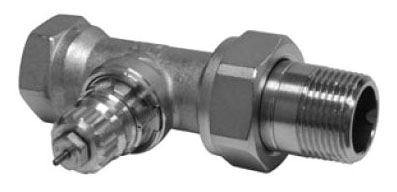

Danfoss 013G8020 3/4" NPT. Straight Thermostatic Radiator Valve Body

Danfoss 013G8020 3/4″ NPT. Straight Thermostatic Radiator Valve Body

$84.29

Brand: Danfoss

SKU: 64494

Out of Stock

Out of stock

SKU: 64494 Categories: ,
Danfoss

Description

  • Radiator Valve
  • Type Thermostatic
  • Body Configuration Straight
  • Nominal Size 3/4 Inch
  • End Connection Female Threaded x Male Threaded
  • Body Material Nickel Plated Brass
  • Seat Material EPDM
  • Handle Material ABS Plastic
  • Set Temperature Range 45 to 86 Deg F
  • Temperature Rating 250 Deg F
  • Pressure Rating 145 PSI (Static), 15 PSI (Differential)
  • Inclusions / Features Tail Piece Union
  • Application Hot Water, 2-Pipe Low Pressure Steam, Residential, Commercial and Industrial
  • Flow Coefficient 2.7

Additional information

Weight 2 lbs
