Description

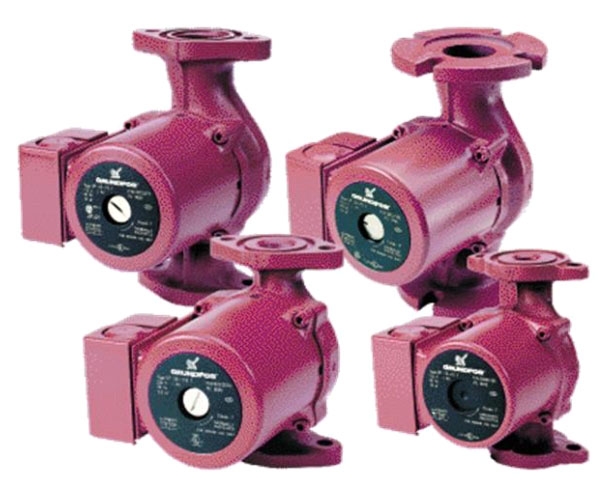

- Circulator Pump
- Type 1-Speed, Canned Rotor, Large Stator
- End Connection Flanged x Flanged
- Overall Dimensions 8-1/2 Inch Length x 6-11/16 Inch Width
- Flow Rate 0 to 45 GPM
- Discharge Head 0 to 10.2 Foot
- Casing Material Bronze
- Shaft Material Ceramic
- Impeller Material Composite, PES
- Impeller Design Closed
- Warranty 24 Months from the Date of Delivery
- Shaft Seal Details Aluminum Oxide Ceramic
- Power Rating 1/6 HP
- Input Supply Rating 115 Volt AC at 60 Hertz, 1-Phase 2.15 Amp
- Temperature Rating 36 to 230 Deg F
- Pressure Rating 145 PSI
- Motor Type 2-Pole Asynchronous Squirrel-Cage Permanent Split Capacitor
- Inclusions / Features Carbon Thrust Bearing, Stainless Steel Rotor Can and Bearing Plate, Corrosion Resistant
- Application Heating System, Hot Domestic Water, Cooling and Air Conditioning System
- Applicable Standard CSA, UL (Canada and US)
- Capacitance 10 Microfarad, Voltage Rating 180 Volt
- Water Density 983.2 Kilogram per Cubic Meter
