Description

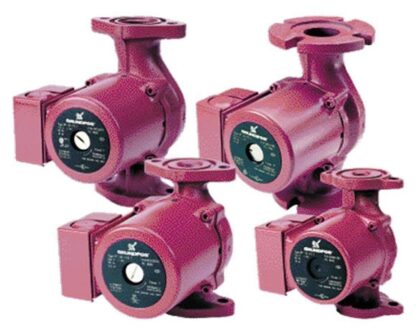

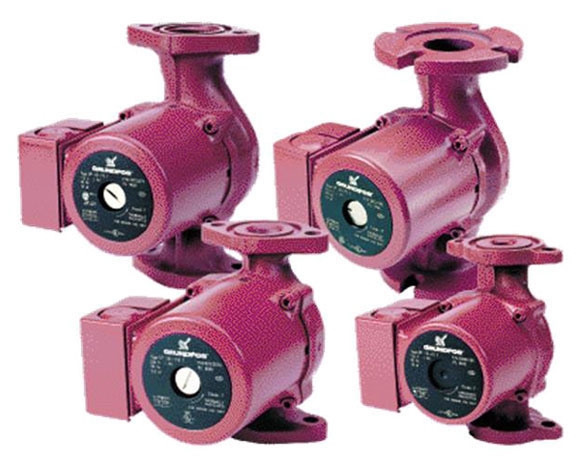

- Circulator Pump
- Type 1-Speed, Canned Rotor, Small Stator
- Suction Size 1-1/4 Inch
- Discharge Size 1-1/4 Inch
- End Connection Union x Union
- Overall Dimensions 5.88 Inch Length x 5.5 Inch Width
- Flow Rate 0 to 20.5 GPM
- Discharge Head 0 to 10 Foot
- Casing Material Stainless Steel
- Shaft Material Ceramic
- Impeller Material Composite, PES
- Impeller Design Open
- Warranty 24 Months from the Date of Delivery
- Shaft Seal Details Aluminum Oxide Ceramic
- Power Rating 1/12 HP
- Input Supply Rating 115 Volt AC at 60 Hertz 1-Phase 0.75 Amp
- Temperature Rating 36 to 230 Deg F
- Pressure Rating 145 PSI
- Motor Type 2-Pole Asynchronous Squirrel-Cage Permanent Split Capacitor
- Inclusions / Features Carbon Thrust Bearing, Stainless Steel Rotor Can and Bearing Plate, Corrosion Resistant
- Application Heating System, Hot Domestic Water, Cooling and Air Conditioning System
- Applicable Standard CSA, UL (Canada and US)
