Description

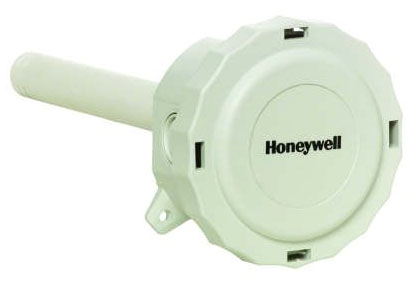

- Duct Humidity Sensor
- Type Accurate, Repeatable, Stable
- Input Voltage 18 to 28 Volt AC, 18 to 40 Volt DC
- Output Voltage 0 to 5 Volt DC or 0 to 10 Volt DC (Selectable)
- Maximum Output Voltage 5/10 Volt DC
- Output Current 4 to 20 Milliamp
- Minimum Output Current Rating 4 Milliamp
- Maximum Output Current Rating 20 Milliamp
- Accuracy + / -2 Percent
- Operating Humidity Range 0 to 95 Percent RH
- Operating Temperature -10 to 140 Deg F
- Mounting Duct Mount
- Size 3 Inch Width x 7/8 Inch Depth x 4-9/16 Inch Height
- Application Humidity and Temperature Sensor
- Sensor Range 0 to 100 Percent RH
