Description

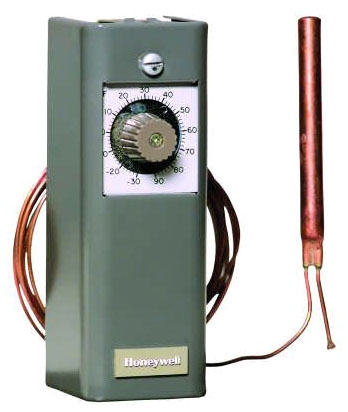

- Temperature Controller
- Type 3/8 Inch Diameter x 3 Inch Length Copper Bulb, 8 Foot Length Capillary
- Maximum Temperature Rating 125 Deg F
- Contact Rating 8 Amp at 120 Volt AC / 5.1 Amp at 240 Volt AC (Full Load), 48 Amp at 120 Volt AC / 30.6 Amp at 240 Volt AC (Locked Rotor)
- Contact Configuration (1) SPDT
- Connection Type 1/2 Inch Conduit
- Application Refrigeration
- Approval UL, CSA
- Overall Dimension 2 Inch Width x 2-1/8 Inch Depth x 5-5/8 Inch Height
- Differential Temperature Rating 3.5 to 16 Deg F
- Set Point Temperature Rating -30 to 90 Deg F
- Includes Mounting Plate, Hanger and Screw
