Description

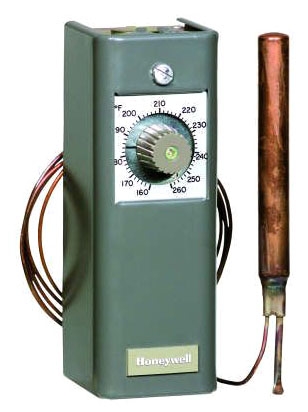

- Remote Temperature Controller
- Type 1/2 Inch Diameter x 4-3/16 Inch Length Copper Bulb, 5 Foot Length Capillary, Modulating
- Maximum Temperature Rating 280 Deg F
- Contact Rating 24 to 30 Volt AC at 50/60 Hertz
- Connection Type 1/2 Inch Conduit
- Application Duct, Tank
- Overall Dimension 2 Inch Width x 2-1/4 Inch Depth x 5-5/8 Inch Height
- Throttling Range 3 to 30 Deg F
- Set Point Temperature Rating 160 to 260 Deg F
- Pressure Rating 50 PSI (Direct Immersion)
- Number of Sensor Inputs 1
- Analog Output (1) 135 Ohm Potentiometer
- Color Gray
