Description

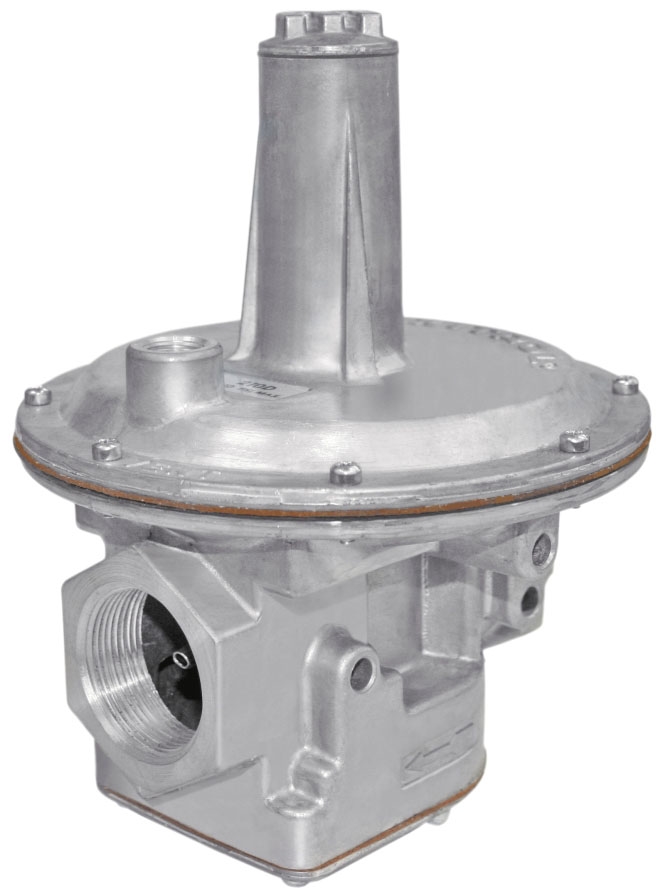

- Gas Pressure Regulator
- Type Adaptable, Zero Governor
- Nominal Size 1-1/2 Inch
- End Connection Female Threaded x Female Threaded
- End to End Distance 6 Inch
- Body Material Aluminum
- Temperature Rating -40 to 200 Deg F
- Pressure Rating 5 PSI (Inlet), 25 PSI (Emergency Exposure Limit), -1 to 1.5 Inch WC (Outlet)
- Application Burner, Nozzle Mixer, Mixing Tee and Proportional Pre-Mixer
- Applicable Standard UL, CSA (Canada and US), CE, ANSI Z21.18
- Gas Type Natural, Mixed Gas, Liquefied Petroleum Gas and LP Gas Air Mixture
- Vent Pipe Connection 1/2 Inch Threaded
- Swing Radius 5.4 Inch
- Size 7 Inch Width x 9 Inch Height
- Pressure Drop Rating 7750 BTU / Hour
