Description

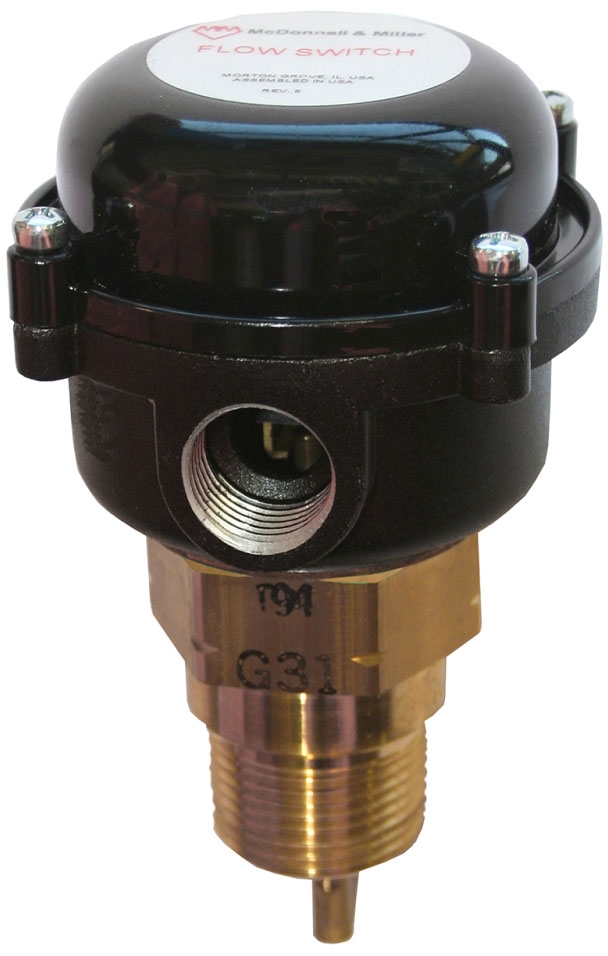

- General Purpose Liquid Flow Switch
- Type Paddle
- Nominal Size 1 Inch
- End Connection Threaded
- Contact Type SPDT Snap Switch
- Enclosure Type NEMA 4X
- Current Rating 7.4 Amp at 120 Volt AC, 3.7 Amp at 240 Volt AC
- Input Supply Rating 125 Volt Amp at 120/240 Volt AC at 50/60 Hertz
- Flow Rate 4.9 to 17.6 GPM (Flow), 3.4 to 15 GPM (No Flow)
- Temperature Rating 32 to 300 Deg F
- Pressure Rating 160 PSI
- Inclusions / Features Sensitivity Adjustable Screw, Sealed Monel Bellows
- Applicable Standard UL, CSA
