Description

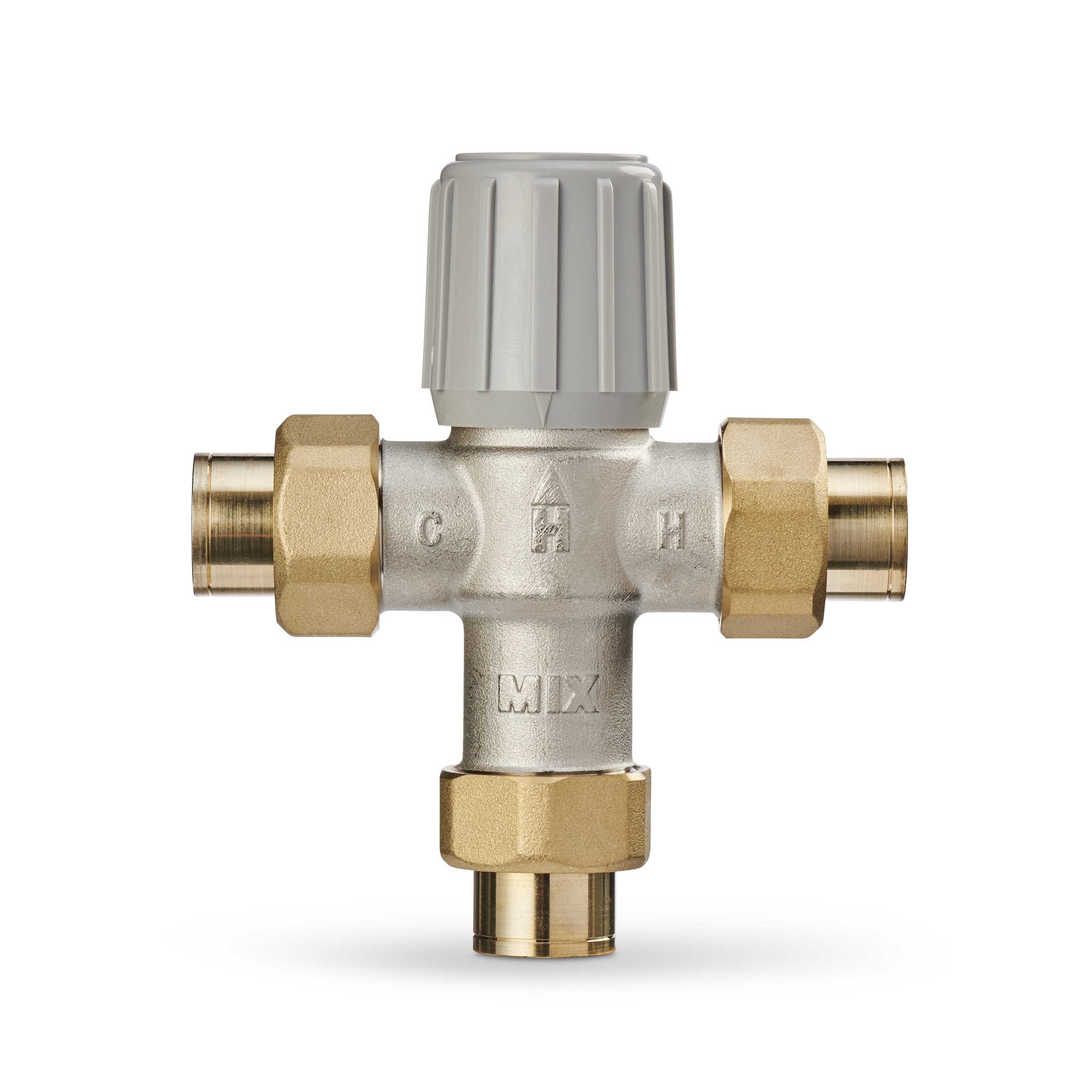

- Thermostatic Mixing Valve
- Type Thermostatic
- Nominal Size 3/4 Inch
- End Connection Union Soldered x Union Soldered x Union Soldered
- End to End Distance 4.9 Inch
- Base to Inlet Dimension 2.9 Inch
- Inlet to Mixing Outlet Dimension 2.9 Inch
- Body Material Non-Stick Coated Nickel Plated Brass
- Flow Rate 0.5 GPM
- Temperature Rating 212 Deg F
- Pressure Rating 150 PSI
- Inclusions / Features Anti-Scald, Anti-Chill Protection, Proportional Valve, Dual Purpose Mixing or Diverting Valve, Tamper Resistant Design, Straight-Through Design
- Application Domestic Water, Nursing Home, Public Facilities, Automatic Faucet, Radiant Floor Heating, Space Heating, Combo System, Solar Hot Water, Greenhouse, Industrial Application, Photo Processing
- Applicable Standard ASSE 1017, CSA, IAPMO
- Lead-Free
- Length 5.6 Inch
- Operating Temperature 70 to 145 Deg F
- Flow Capacity 3.9 Cv
- O-Ring Material EPDM Rubber
