Description

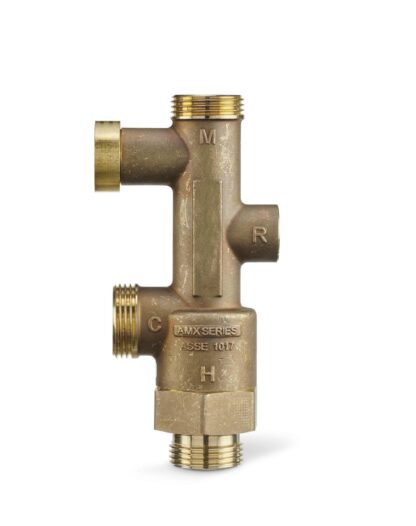

- Thermostatic Mixing Valve
- Type Thermostatic
- Nominal Size 1 Inch
- End Connection Union Threaded x Union Threaded x Female Threaded
- End to End Distance 10.3 Inch
- Base to Inlet Dimension 4-1/2 Inch
- Inlet to Mixing Outlet Dimension 4-1/2 Inch
- Body Material Non-Stick Coated Brass / Stainless Steel
- Flow Rate 0.5 GPM
- Temperature Rating 200 Deg F
- Pressure Rating 150 PSI
- Inclusions / Features 3/16 Allen Wrench, Dual Purpose Mixing or Diverting Valve, Proportional Valve, Union Coupled Tailpiece Connection, Integral Check Valve
- Application Domestic Water, Nursing Home, Public Facilities, Automatic Faucet, Radiant Floor Heating, Space Heating, Combo System, Solar Hot Water, Greenhouse, Industrial Application, Photo Processing
- Applicable Standard ASSE 1017, CSA (Canada and US), UPC, IAPMO
- Lead-Free
- Operating Temperature 90 to 130 Deg F
- Flow Capacity 4 Cv
