Description

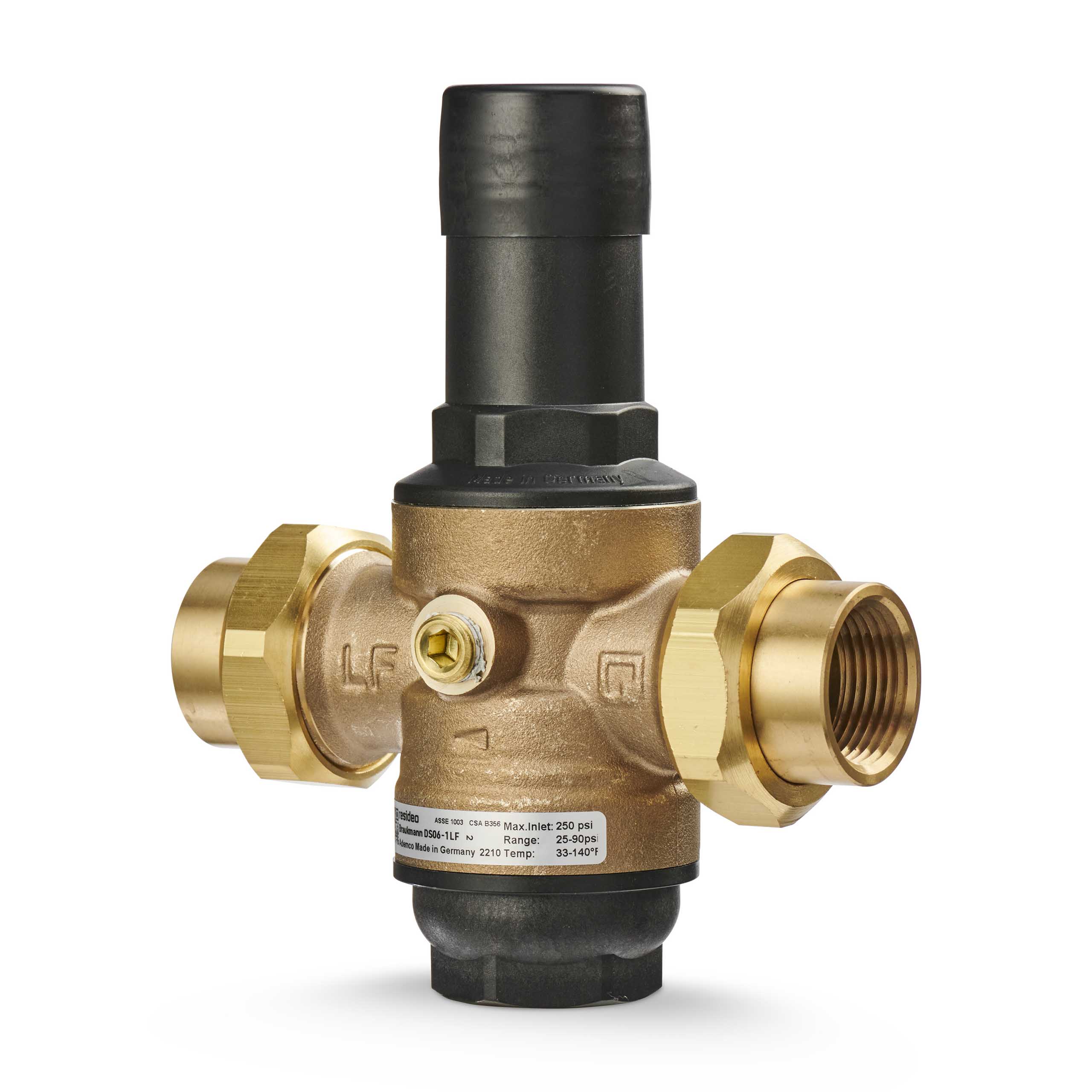

- Pressure Regulating Valve
- Nominal Size 3/4 Inch
- End Connection Female Threaded x Female Threaded
- Body Material Bronze
- Diaphragm Material Fabric Reinforced
- Downstream Pressure Range 25 to 90 PSI
- Standard Factory Setting 60 PSI
- Strainer Supplied Yes
- Temperature Rating 140 Deg F
- Pressure Rating 250 PSI
- Inclusions / Features Dial Set, Non-Corroding Unitized Cartridge, Strainer
- Application Potable Water and Irrigation
- Applicable Standard CSA B356, ASSE 1003, IAPMO / UPC, NSF 61
- Lead-Free
- Overall Dimension 3-35/64 Inch Length x 5-53/64 Inch Height
- Gauge Tap Size 1/4 Inch Threaded
- Union Fitting Type Double Union Threaded
