Description

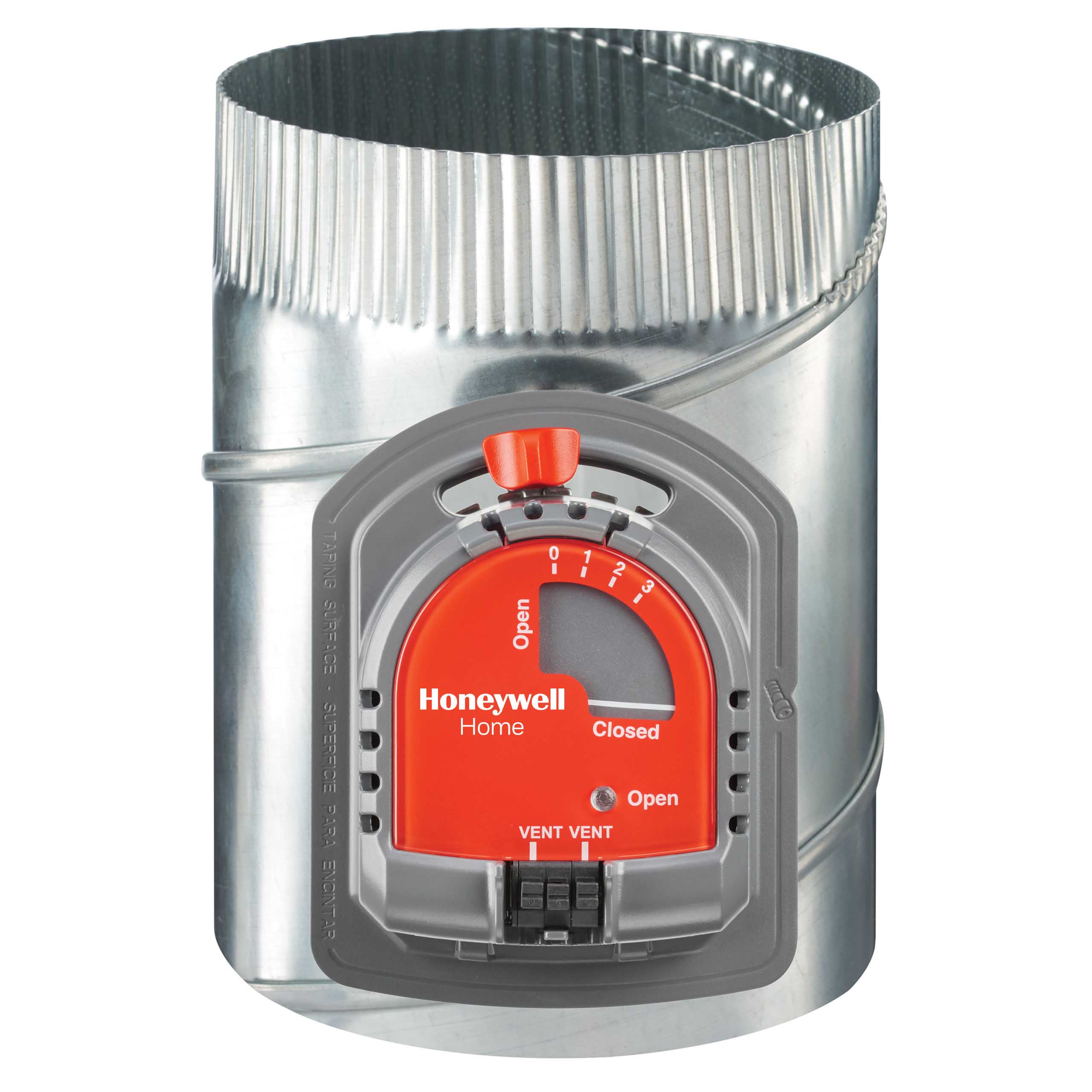

- Fresh Air Damper
- Type Round, Single Blade
- Duct Size 6 Inch Diameter
- Blade Material Galvanized Steel
- Inclusions / Features Quiet Operation
- Motor Rating 24 Volt AC at 60 Hertz 8 Volt Amp
- Motor Torque Rating 71 Inch-Ounce
- Temperature Rating 40 to 140 Deg F
- Pressure Drop Less than 0.0329 Inch WC at 800 Foot per Minute
- Motor Angular Rotation 90 Degree
- Less than 1 Percent at 1/2 Inch WC
- Maximum Static Pressure Rating 1 Inch WC
- Mounting Type Side or Top
- Motor Type Power Open, Spring Closed
- Motor Timing 30 Second (Power Open) / 10 Second (Spring Return)
- Wires to Motor Terminal M1-Power, M6 Common, M4 (Optional) LED Indication
- Application Ventilation System
