Description

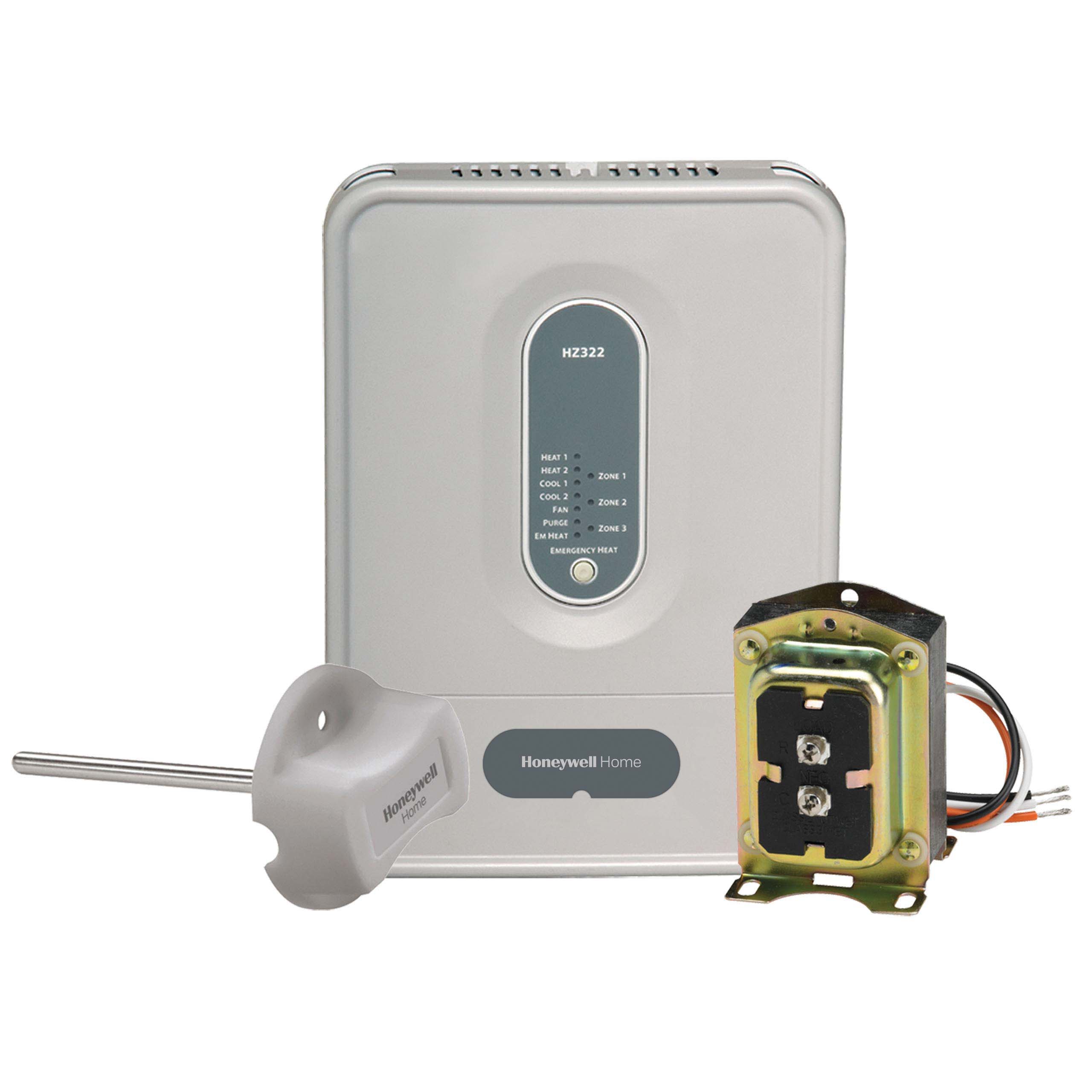

- Zone Control Panel Kit
- Item Control Panel Kit
- Type 3-Zone, 2-Heat / 1-Cool Stage
- Overall Dimensions 8 Inch Width x 1.86 Inch Depth x 11.5 Inch Height
- Input Supply Rating 24 Volt 7.5 Volt Amp
- Temperature Rating -40 to 165 Deg F
- Inclusions / Features LED, Auto Changeover, Discharge Air Temperature Sensor, Resettable Fuse, Zone Fan Control, HZ322 Zone Control Panel, AT140 Transformer, 35A Discharge Air Temperature Sensor
- Application Conventional 1-Stage Zoning Heat Pump
- Transformer Rating 18 to 30 Volt AC 50/60 Hertz
- Wire Type 18 or 20 Gauge Solid
- Mounting Type Wall
- Humidity 5 to 90 Percent RH (Non-Condensing)
