Description

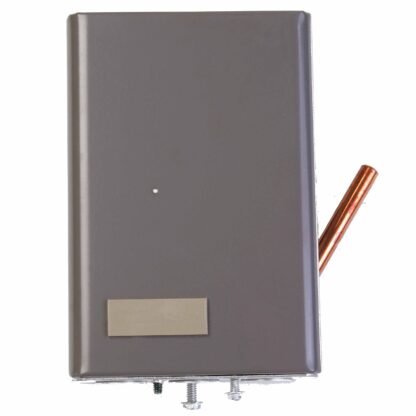

- Aquastat Relay
- Type 4-1/2 Inch Length Capillary, High Limit, Horizontal / Vertical Well Immersion
- Temperature Range 140 to 240 Deg F (High Limit)
- Maximum Temperature Rating 150 Deg F with 1.2 Amp 24 Volt / 77 Deg F with 1.4 Amp 24 Volt (Load)
- Contact Rating 7.4 Amp at 120 Volt AC / 3.7 Amp at 240 Volt AC Full Load, 44.4 Amp at 120 Volt AC / 22.2 Amp at 240 Volt AC Locked Rotor (Burner / Circulator), 0.8 Amp at 24 Volt AC (Low Voltage), 0.25 Amp at 1/4 to 12 Volt DC (Millivoltage), 0.2 Amp (Anticipator Setting)
- Contact Configuration SPST
- Connection Type 1/2 Inch Conduit, Quick Connect / Screw
- Application Circulator Motor, Burner
- Approval UL, CSA
- Overall Dimension 4-5/16 Inch Width x 3-1/8 Inch Depth x 6-1/8 Inch Height (Horizontal), 6-1/8 Inch Width x 3-1/8 Inch Depth x 4-5/16 Inch Height (Vertical)
- Differential Temperature Rating 8 Deg F
- Maximum Safe Operating Pressure Rating 255 PSI
- Humidity 0 to 95 Percent Relative, Non-Condensing
- Insulation Depth 1-1/2 to 3 Inch
- Includes Heat Conductive Compound
