Description

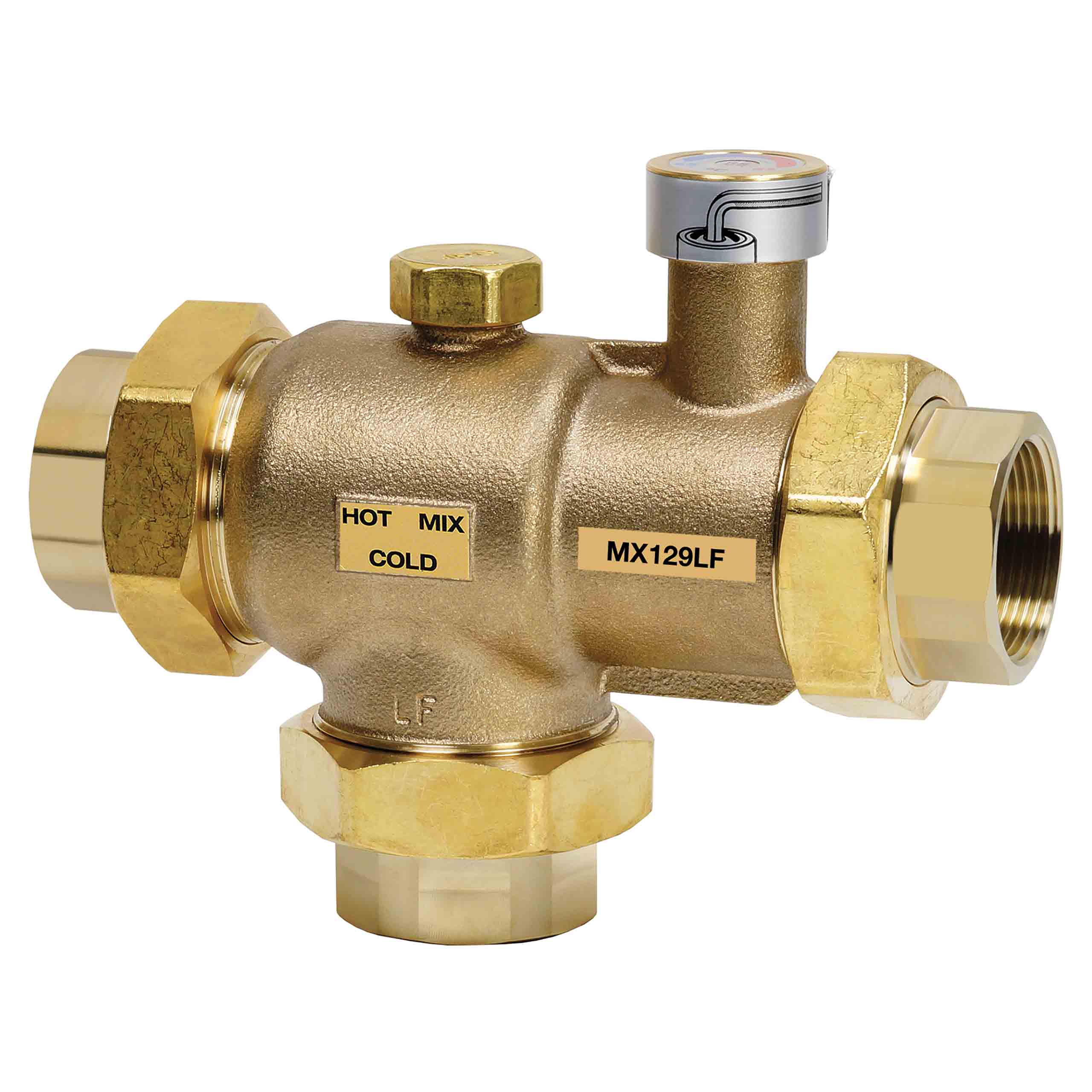

- Thermostatic Mixing Valve
- Type Thermostatic, Proportional, Large Flow
- Nominal Size 2 Inch
- End Connection Threaded x Threaded x Threaded
- End to End Distance 10 Inch
- Base to Inlet Dimension 4.2 Inch
- Inlet to Mixing Outlet Dimension 4.2 Inch
- Body Material Non-Stick Coated Bronze / Stainless Steel
- Flow Rate 100 GPM at 30 PSI
- Temperature Rating 221 Deg F
- Pressure Rating 150 PSI
- Inclusions / Features Allen Wrench For Temperature Adjustment, Thermostatic Element Provide Automatic Operation, Proportional Valve, Temperature Adjustable, Dual Purpose Mixing or Diverting Valve, Union / Tailpiece Connection
- Application Home, Apartment, Hotel, School, Hospital, Nursing Home, Office, Public Facilities, Commercial and Industrial Building, Space Heating, Central Distribution System, Heat Pump System, Radiant Floor Heating, Combo System
- Applicable Standard ASSE 1017, CSA (Canada and US)
- Lead-Free
- Flow Capacity 18 Cv
- Operating Temperature 113 to 149 Deg F
