Description

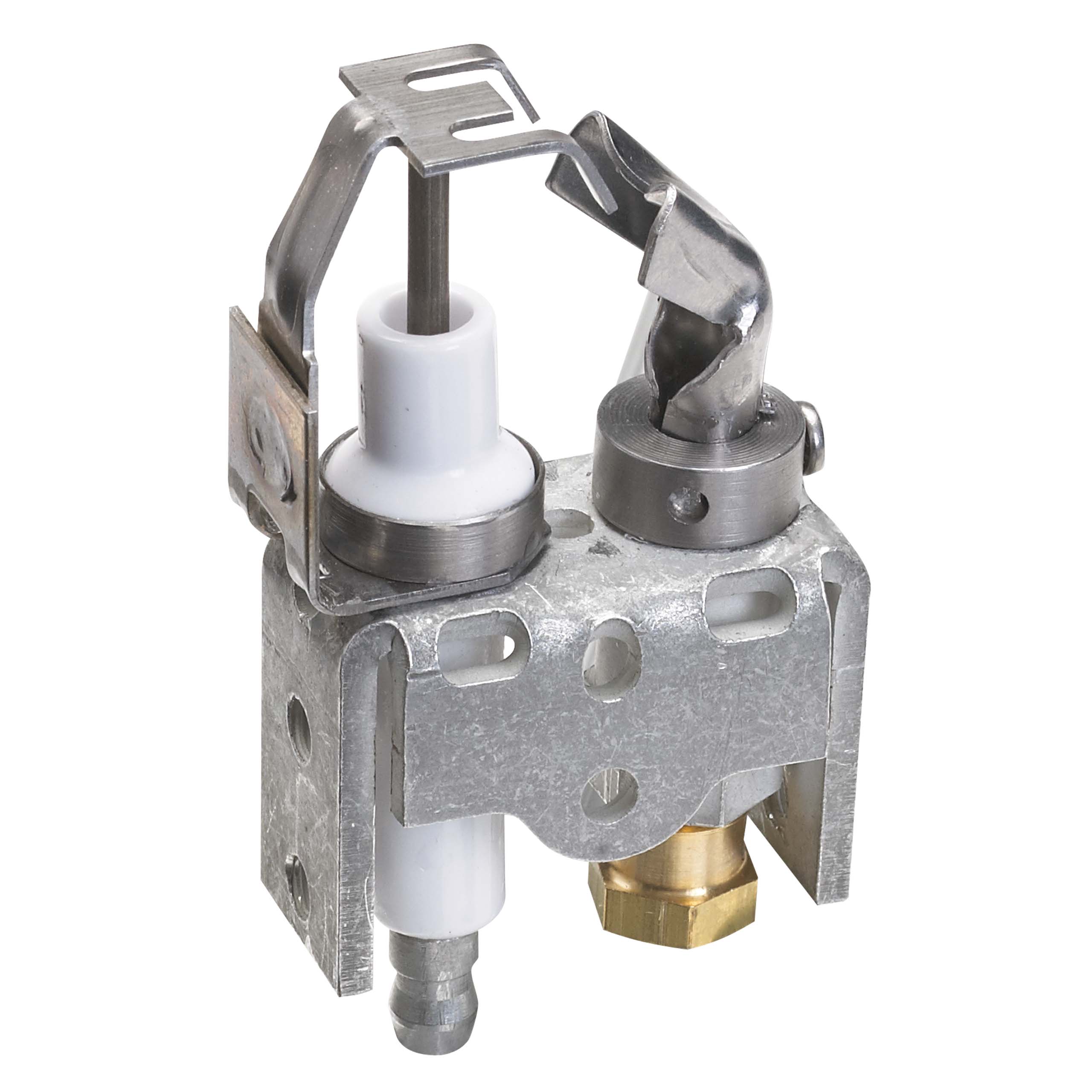

- Pilot Burner
- Type Non-Primary Aerated, Universal, 1-Tip
- Fuel Type Natural / Liquid Propane Gas
- Ignition Source Kanthal Flame Rod / Spark Igniter
- Mounting Bracket Type U
- Fitting Size 1/4 Inch Installed, 1/8 Inch Packed Compression
- Orifice Size 0.02 Inch (BCR-20), 0.018 Inch (BCR-18), 0.012 Inch (BBR-12), 0.01 Inch (BBR-11)
- Application Intermittent Pilot System
- Tip Style Single
- Front Tip Direction Adjustable Left / Right / Center
- Includes Universal Mounting Bracket, Ceramic Insulated Kanthal Flame Rod / Spark Igniter and Ground Strap
- Used On S8600F, S8600H, S8600M, S8610F, S8610H, S8610M, S8610U, S8660D, S8660E, S8670D, 70E Intermittent Pilot System
