Description

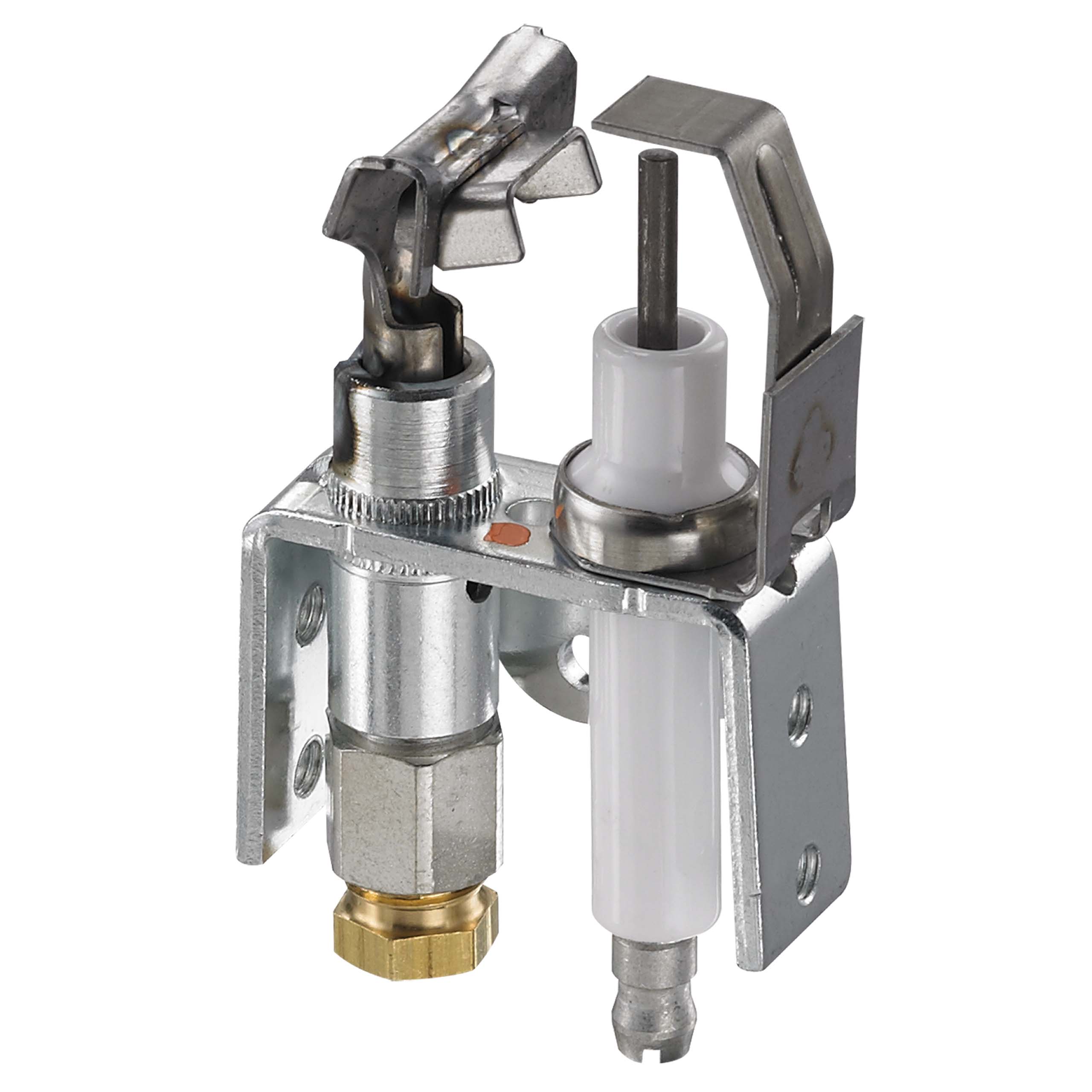

- Pilot Burner
- Type Primary Aerated, Universal
- Fuel Type Natural / Liquid Propane Gas
- Ignition Source Kanthal Flame Rod / Spark Igniter
- Mounting Bracket Type U
- Fitting Size 1/4 Inch Installed, 1/8 Inch Packed Compression
- Orifice Size 0.014 Inch (KR14), 0.022 Inch (NE22), 0.024 Inch (KF24), 0.026 Inch (A26)
- Application Intermittent Pilot
- Tip Style Batwing
- Front Tip Direction 1 Inch Wing Span
- Compression Fitting Length 1/4 Inch (Installed), 1/8 Inch (Packed)
- Pilot Heat Capacity 1000 BTU / Hour
- Includes Orifice, 1 Inch Batwing, Universal Mounting Bracket
- Used On S8600F, S8600H, S8600M, S8610F, S8610H, S8610M, S8610U, S8660D, S8660E, S8670D, 70E Control Module
