Description

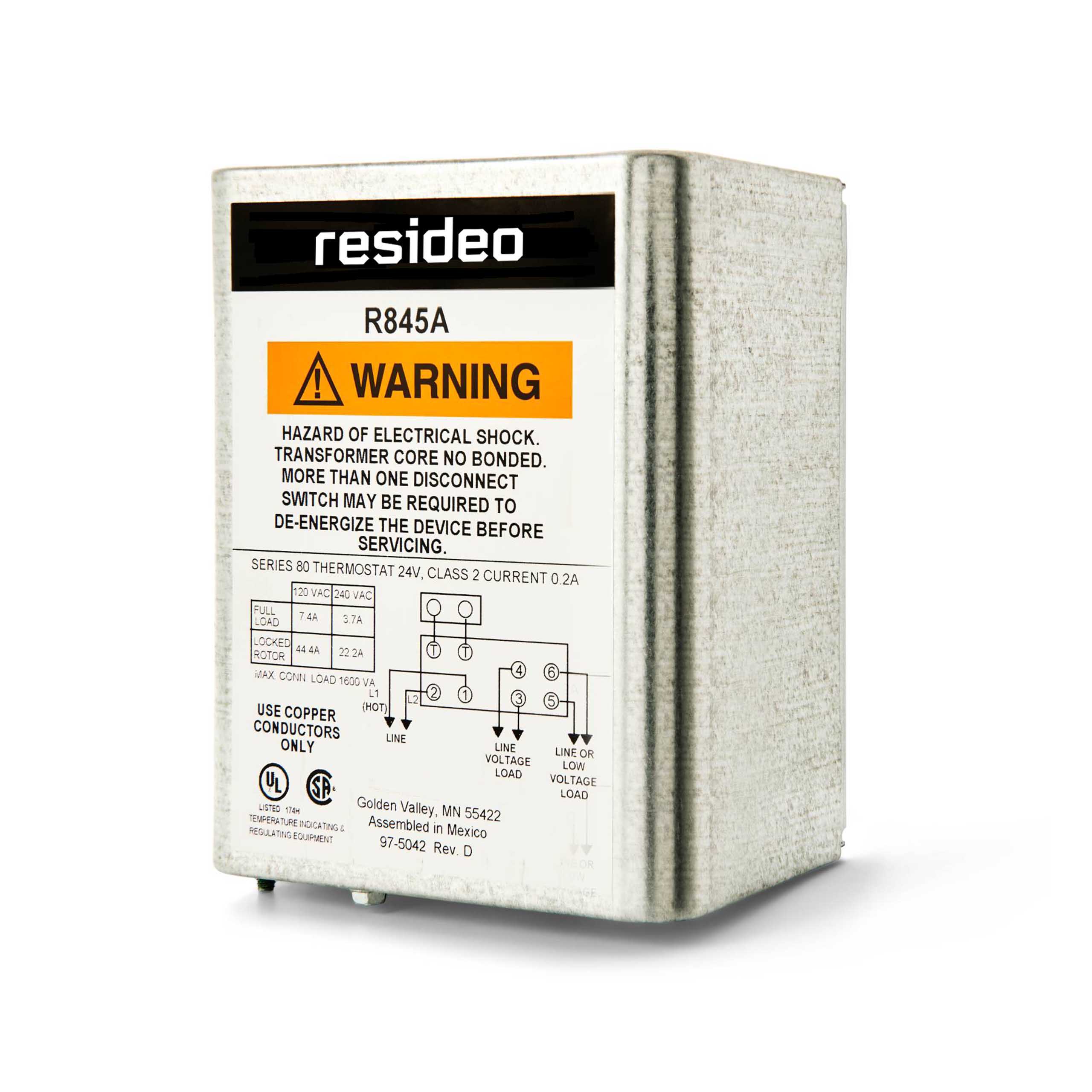

- Switching Relay
- Type AC Operated
- Contact Configuration DPST
- Contact Voltage Rating 120/240 Volt AC at 50/60 Hertz
- Contact Current Rating 7.4 Amp at 120 Volt AC, 3.7 Amp at 240 Volt AC (Full Load), 44.4 Amp at 120 Volt AC, 22.2 Amp at 240 Volt AC (Locked Rotor), 10 Amp at 120 Volt AC, 6 Amp at 240 Volt AC (Resistive)
- Coil Voltage 24 Volt AC at 50/60 Hertz
- Terminal Type 2-Wire
- Approval UL, CSA
- Overall Dimension 4-1/4 Inch Width x 2-5/16 Inch Depth x 5-1/4 Inch Height
- Pilot Duty Rating 50 Volt Amp at 24 Volt AC (Secondary)
- Coil Current Rating 0.4 Amp
- Temperature Rating 115 Deg F at 60 Hertz
- Includes Integral Transformer
- Application Hydronic Control
