Description

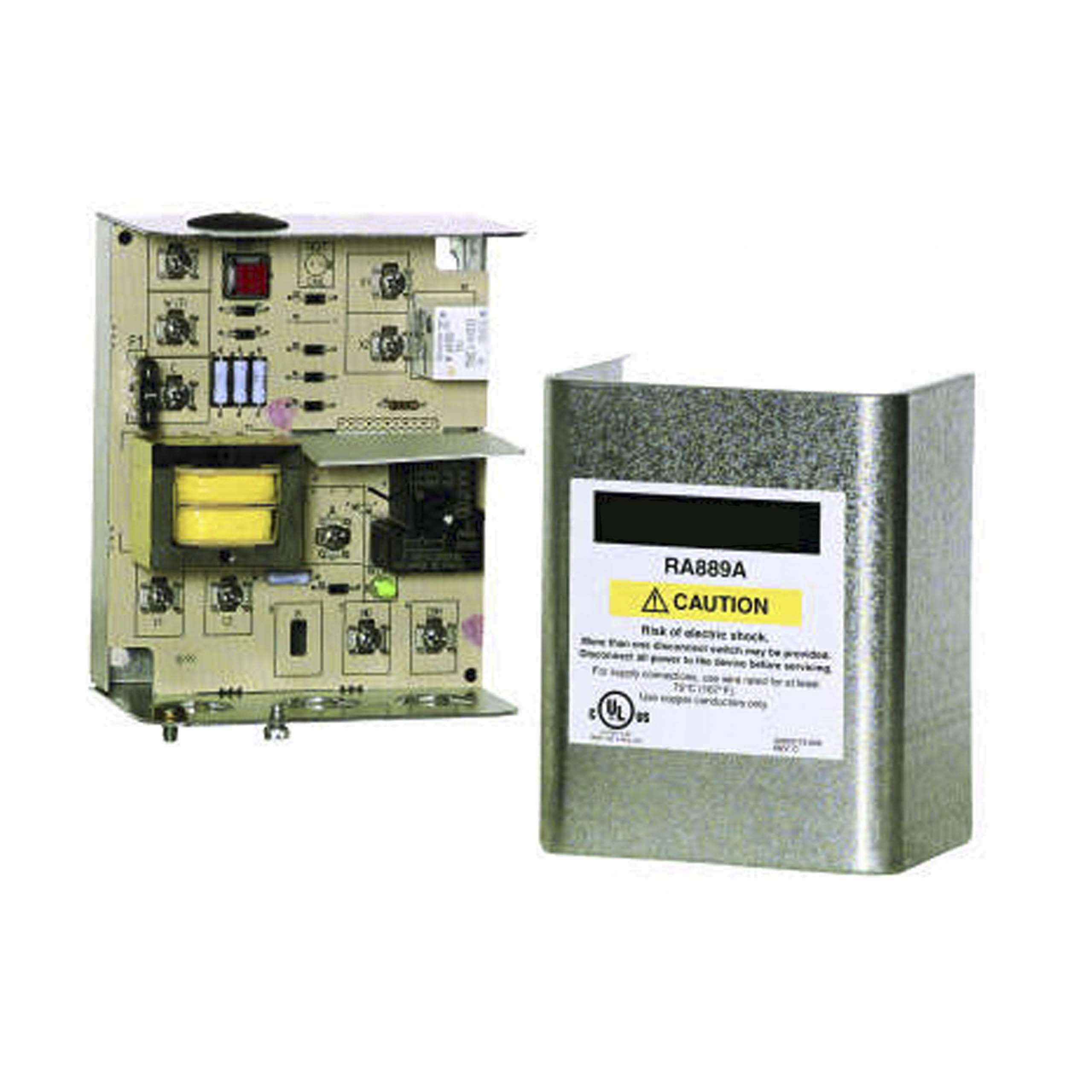

- Switching Relay
- Type AC / DC Operated
- Contact Configuration SPDT
- Contact Voltage Rating 120 Volt AC at 60 Hertz
- Contact Current Rating 15 Amp at 120 Volt AC (Full Load), 30 Amp at 120 Volt AC (Locked Rotor)
- Coil Voltage 24 Volt AC at 60 Hertz
- Overall Dimension 4-7/16 Inch Width x 3-1/2 Inch Depth x 6-1/4 Inch Height
- Temperature Rating -20 to 120 Deg F
- Humidity 0 to 90 Percent RH
- Includes Integral Transformer, Enclosure
- Application Hydronic Control, Low Voltage Controller
