Description

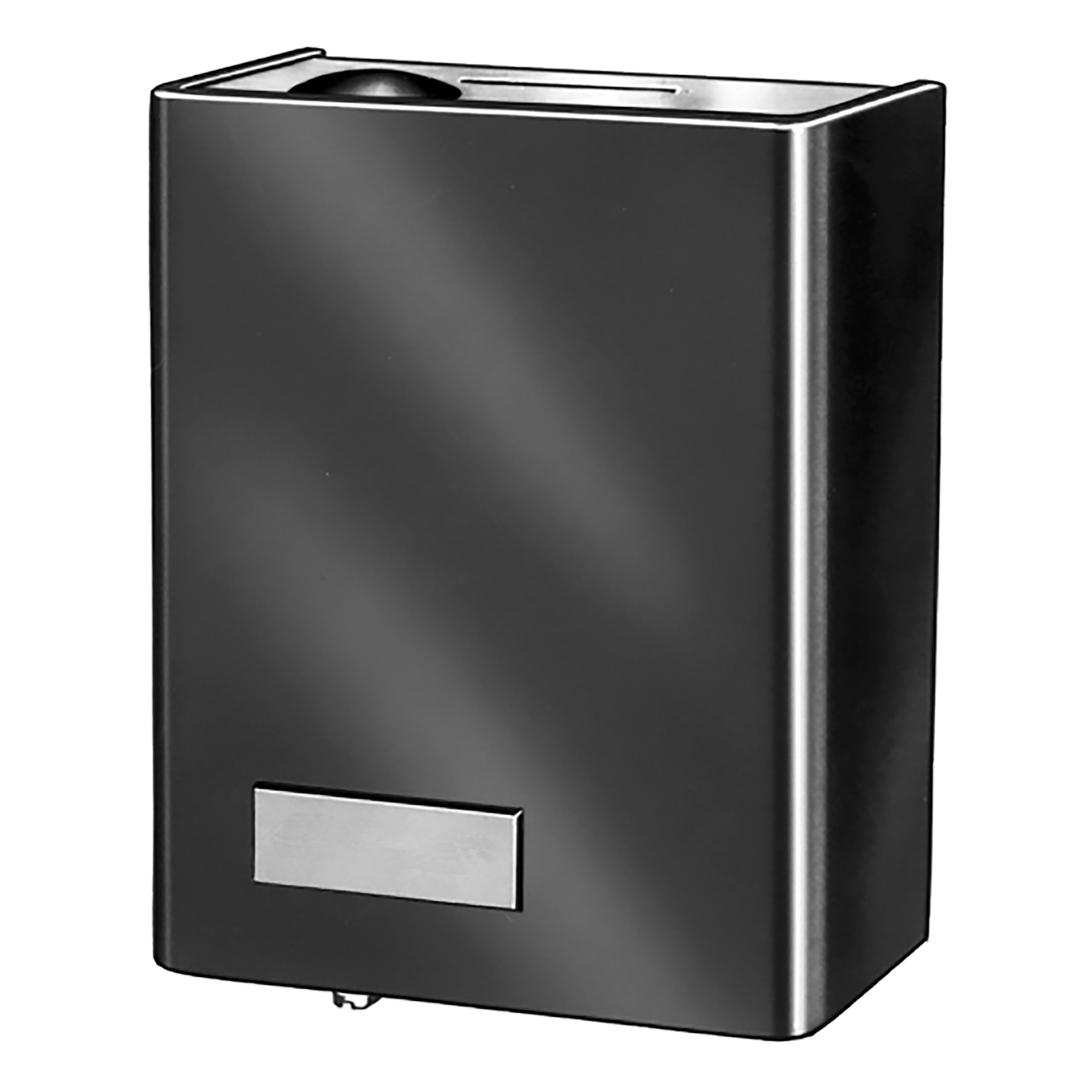

- Hydronic Switching Relay
- Item Switching Relay
- Switch Type Intermediate SPST
- Overall Dimensions 4-1/4 Inch Width x 2-5/16 Inch Depth x 5-1/4 Inch Height
- Current Rating 10.2 Amp at 120 Volt AC and 5.1 Amp at 240 Volt AC (Full Load), 61.2 Amp at 120 Volt AC and 30.6 Amp at 240 Volt AC (Locked Rotor), 10 Amp at 120 Volt AC and 6 Amp at 240 Volt AC (Resistive)
- Input Supply Rating 5 Watt at 120 Volt AC 50/60 Hertz
- Inclusions / Features Integral Transformer, Enclosure
- Application Hydronic Control
- Applicable Standard UL, CSA
- Coil Rating 24 Volt AC 50/60 Hertz 0.4 Amp
- Connection Type 2-Wire Control Circuit
- Ambient Temperature 115 Deg F at 60 Hertz, 105 Deg F at 50 Hertz
