Description

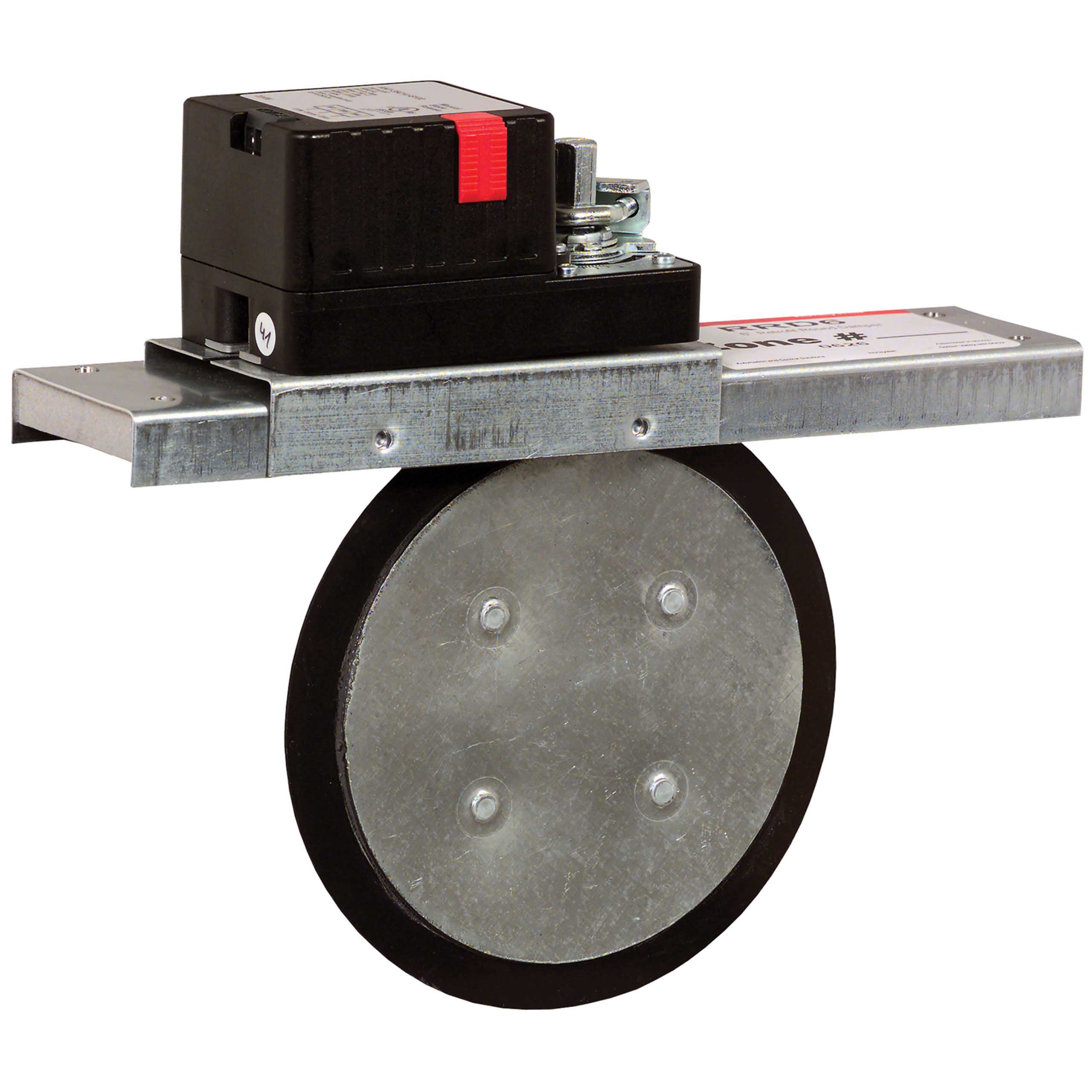

- Retrofit Damper
- Type Round, Retrofit
- Duct Size 5 Inch Diameter
- Material Thickness 18 Gauge (Frame), 20 Gauge (Blade)
- Blade Material G60 / G90 Galvanized Steel
- Inclusions / Features Black EPDM Rubber Gasket
- Applicable Standard UL, NEMA 1
- Voltage Rating 24 Volt AC 50/60 Hertz
- Motor Torque Rating 45 Inch-Pound
- Ambient Temperature -40 to 122 Deg F
- Power Rating 1.5 Watt
- Pressure Drop Less than 0.05 Inch WC (Open)
- Motor Angular Rotation 90 Degree
- Leakage 3.4 Percent at 0.5 Inch WC (Closed)
- Mounting Type Direct Connection to Damper Shaft
- Motor Type Power Open, Power Close
- Motor Timing 90 Second
- Wires to Motor Terminal 3
- Application Heating and Cooling System
