Description

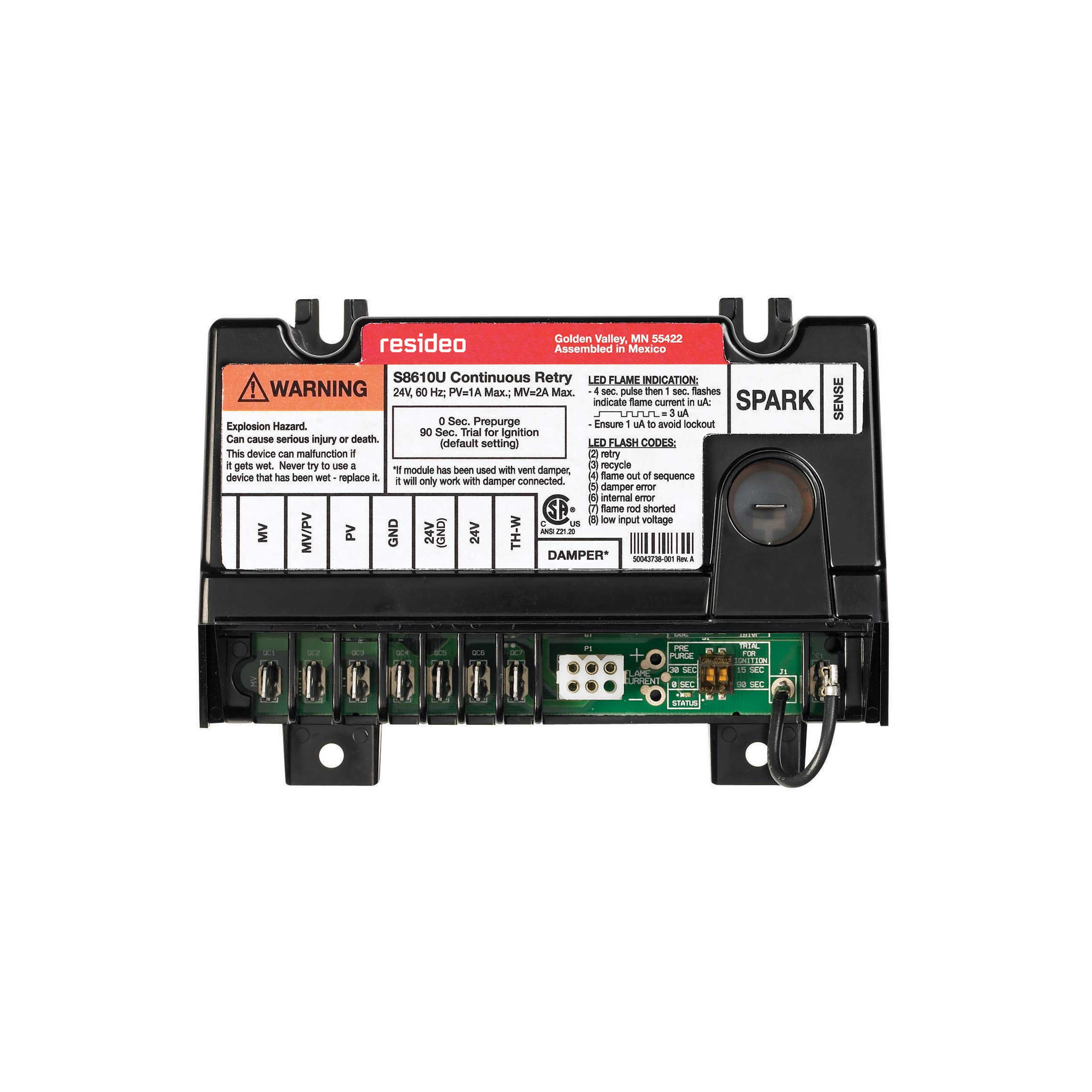

- Ignition Control Module
- Type Universal, Intermittent Pilot
- Fuel Type Natural / Liquid Propane Gas
- Flame Sense Type Single or Dual Rod
- Ignition Source Internal High Voltage Spark Generator
- Ignition Sequence Continuous Retry
- Ignition Trial Time 15/90 Second
- Prepurge Time Configurable to 30 Second / No Pre-Purge
- Flame Failure Response Time 2 Second
- Valve Rating 1 Amp Pilot / 2 Amp Main at 165 Deg F, 1 Amp Pilot / Main at 175 Deg F
- Power Rating 24 Volt AC at 60 Hertz
- Size 5-7/16 Inch Width x 2-5/8 Inch Depth x 3-15/16 Inch Height
- Temperature Rating -40 to 165 Deg F
- Application Warm Air Furnace, Heating Appliance
- Approval CSA
- Includes Damper Connection, Automatic Vent Damper Plug
