Description

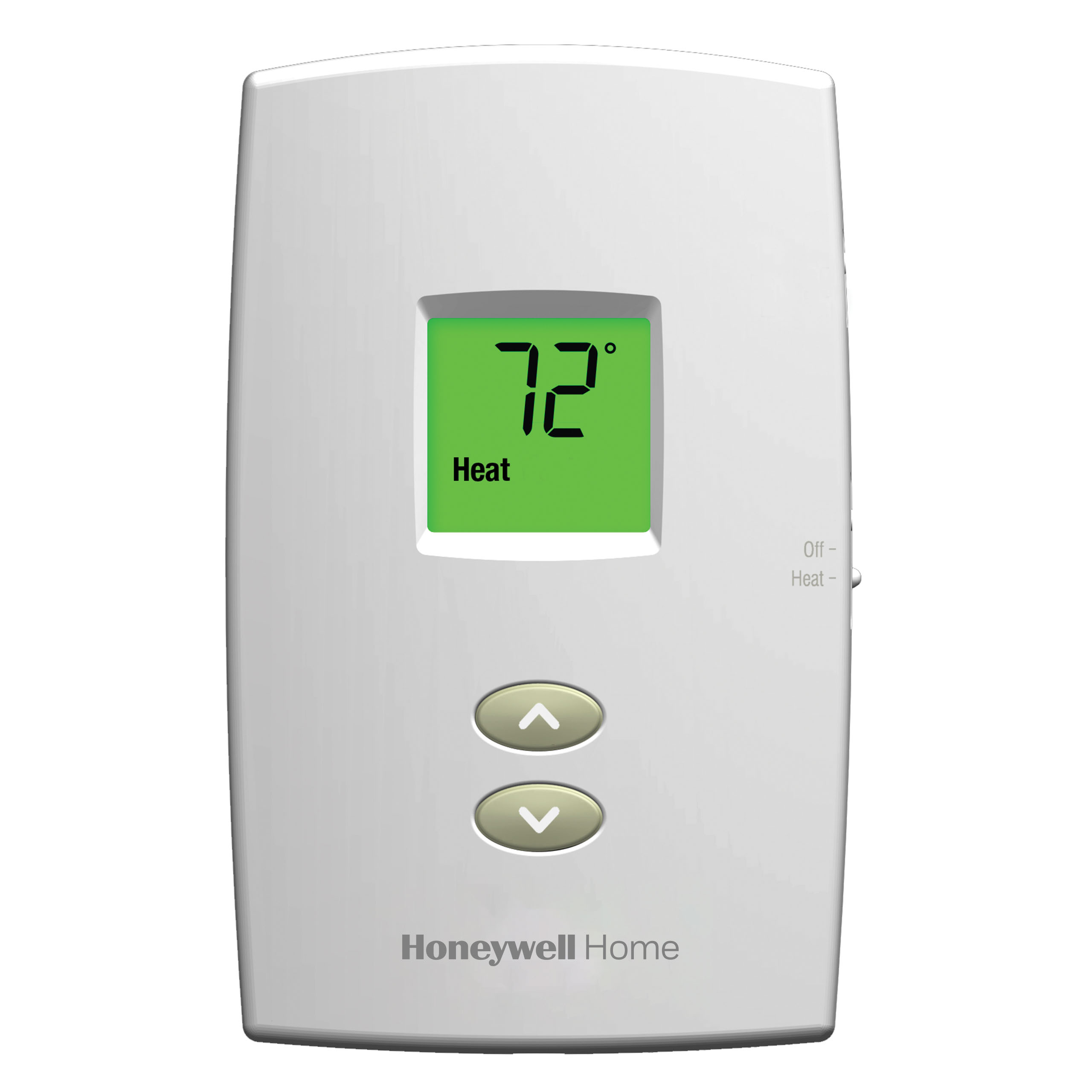

- Thermostat
- Type Digital Non-Programmable, 1-Heat, 1-Stage, Manual Changeover
- Cover Type Rectangular Vertical
- Color Premier White
- Voltage Rating 20 to 30 Volt AC / 750 Millivolt at 50/60 Hertz
- Current Rating 0.02 to 1 Amp (Heat)
- Size 2-7/8 Inch Width x 1-1/8 Inch Depth x 4-11/16 Inch Height
- Display Size 1.32 Square Inch
- Switch Position Heat-Off (System)
- Power Method Dual Power
- Terminal Designations R, C, W
- Humidity 5 to 90 Percent Relative (Non-Condensing)
- Setting Temperature Rating 40 to 90 Deg F / 35 to 90 Deg F (Heat)
