Description

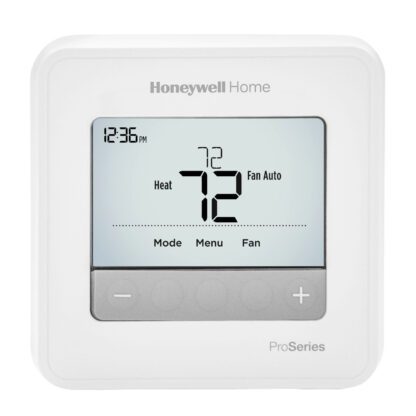

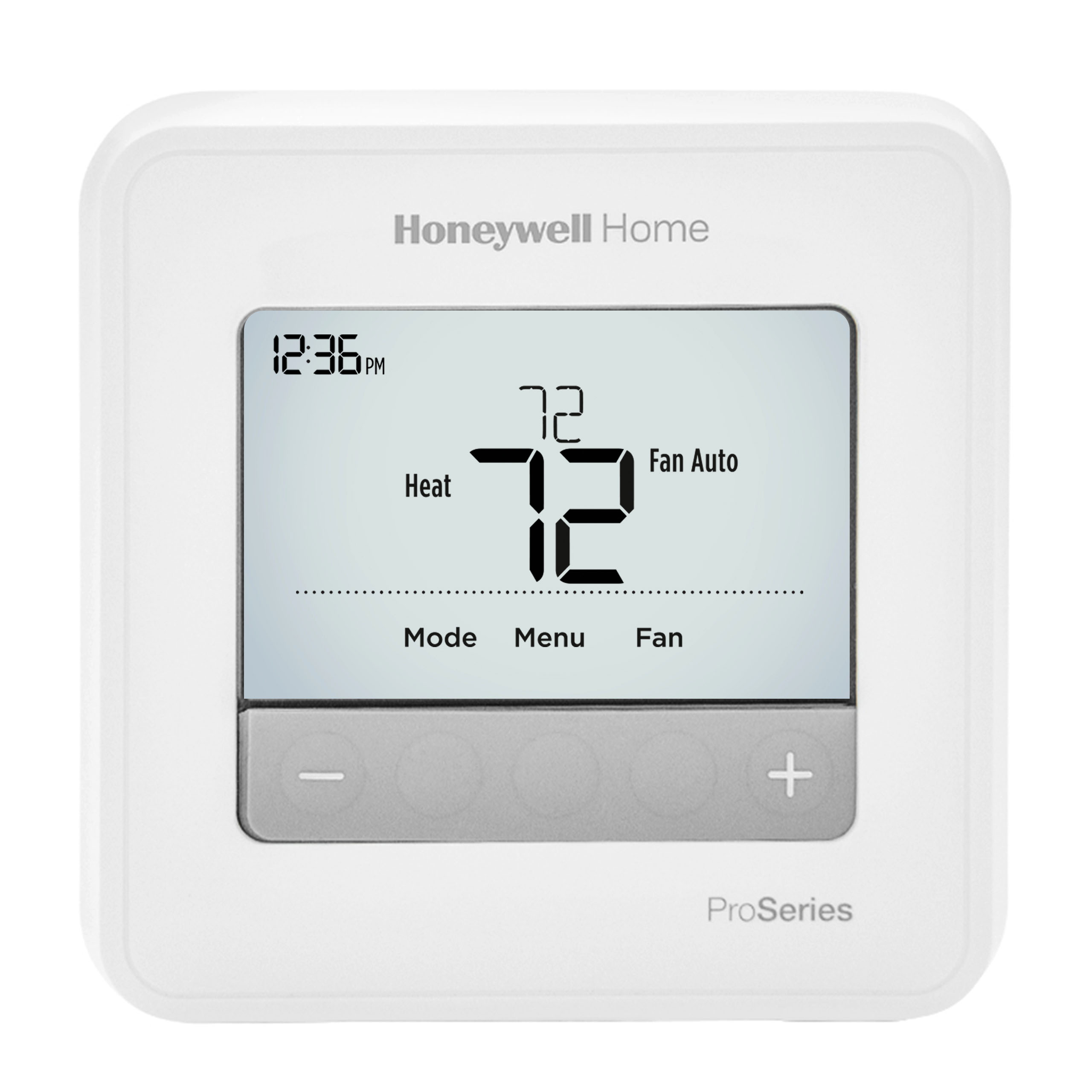

- Thermostat
- Type 5-1-1/5-2/7 Day Programmable / Non-Programmable, 1-Heat / 1-Cool (Heat Pump), 1-Heat / 1-Cool (Conventional), Auto / Manual Changeover
- Color White
- Voltage Rating 20 to 30 Volt AC at 50/60 Hertz
- Current Rating 0.02 to 1 Amp (Heat / Cool), 0.02 to 0.5 Amp (Fan)
- Switch Type Relay
- Size 4-1/16 Inch Length x 4-1/16 Inch Width x 1-3/32 Inch Depth
- Display Size 3.93 Square Inch
- Switch Position Heat-Off-Cool (System), Auto-On (Fan)
- Ambient Temperature 32 to 120 Deg F
- Setting Temperature Rating 40 to 90 Deg F (Heat), 50 to 99 Deg F (Cool)
- Application Standard Efficient Gas Forced Air, High Efficacy Gas Forced Air, Oil Forced Air, Electric Forced Air, Hot Water Fan Coil, Geothermal Heat Pump, Air to Air Heat
