Description

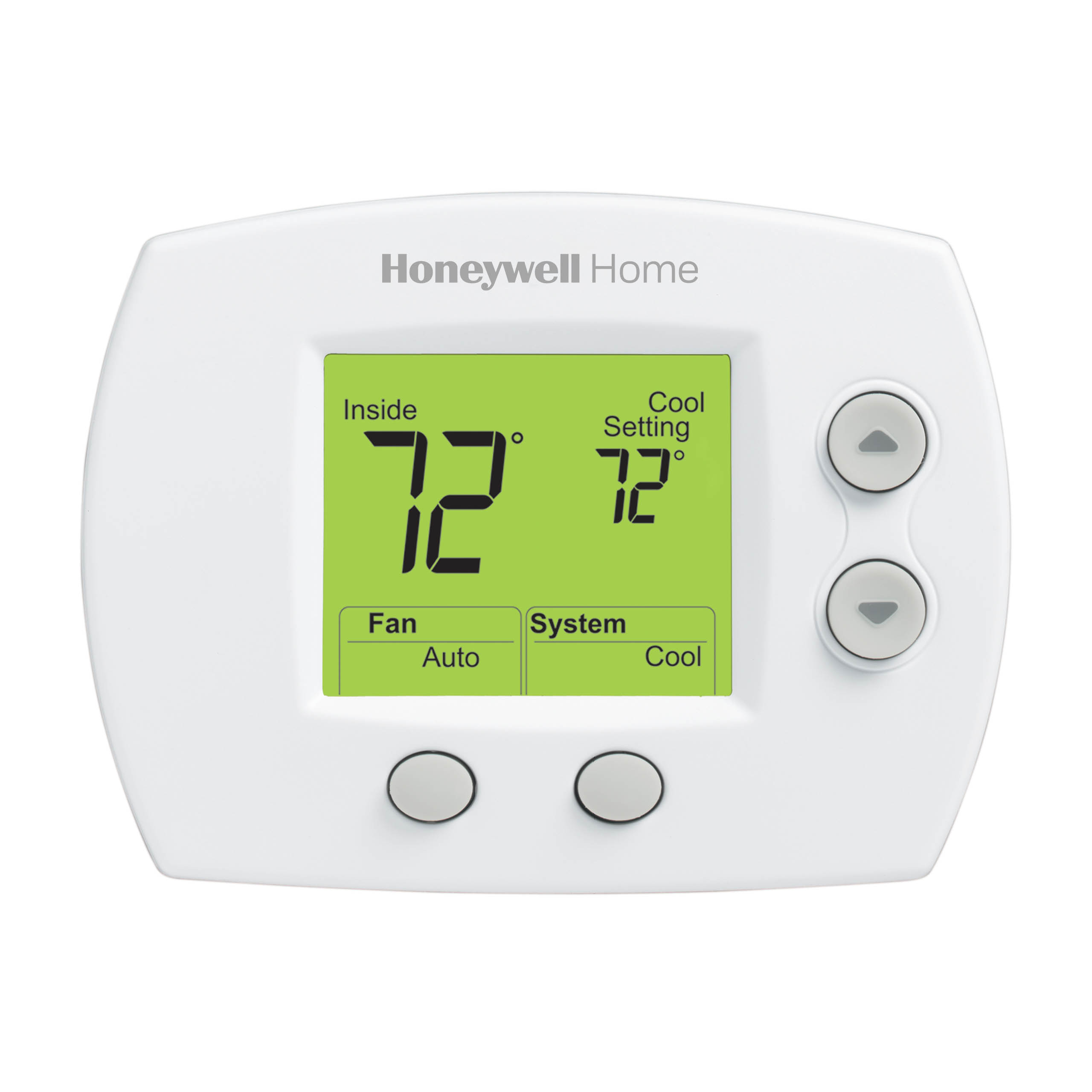

- Thermostat
- Type Digital Non-Programmable, 1-Heat / 1-Cool, Auto / Manual Changeover
- Cover Type Rectangular Horizontal
- Color Premier White
- Voltage Rating 20 to 30 Volt AC / 750 Millivolt at 50/60 Hertz
- Current Rating 1 Amp (Cool / Heat), 0.5 Amp (Fan)
- Switch Type Relay
- Size 4-1/2 Inch Width x 1-5/16 Inch Depth x 3-7/16 Inch Height
- Display Size 2.98 Square Inch
- Sensor Element Thermistor
- Humidity Range 5 to 90 Percent Relative (Non-Condensing)
- Terminal Designations R, RC, C, W (O / B), Y, G
- Accuracy + / -1 Deg F
- Ambient Temperature 32 to 120 Deg F
- Setting Temperature Rating 40 to 90 Deg F (Heat), 50 to 99 Deg F (Cool)
