Description

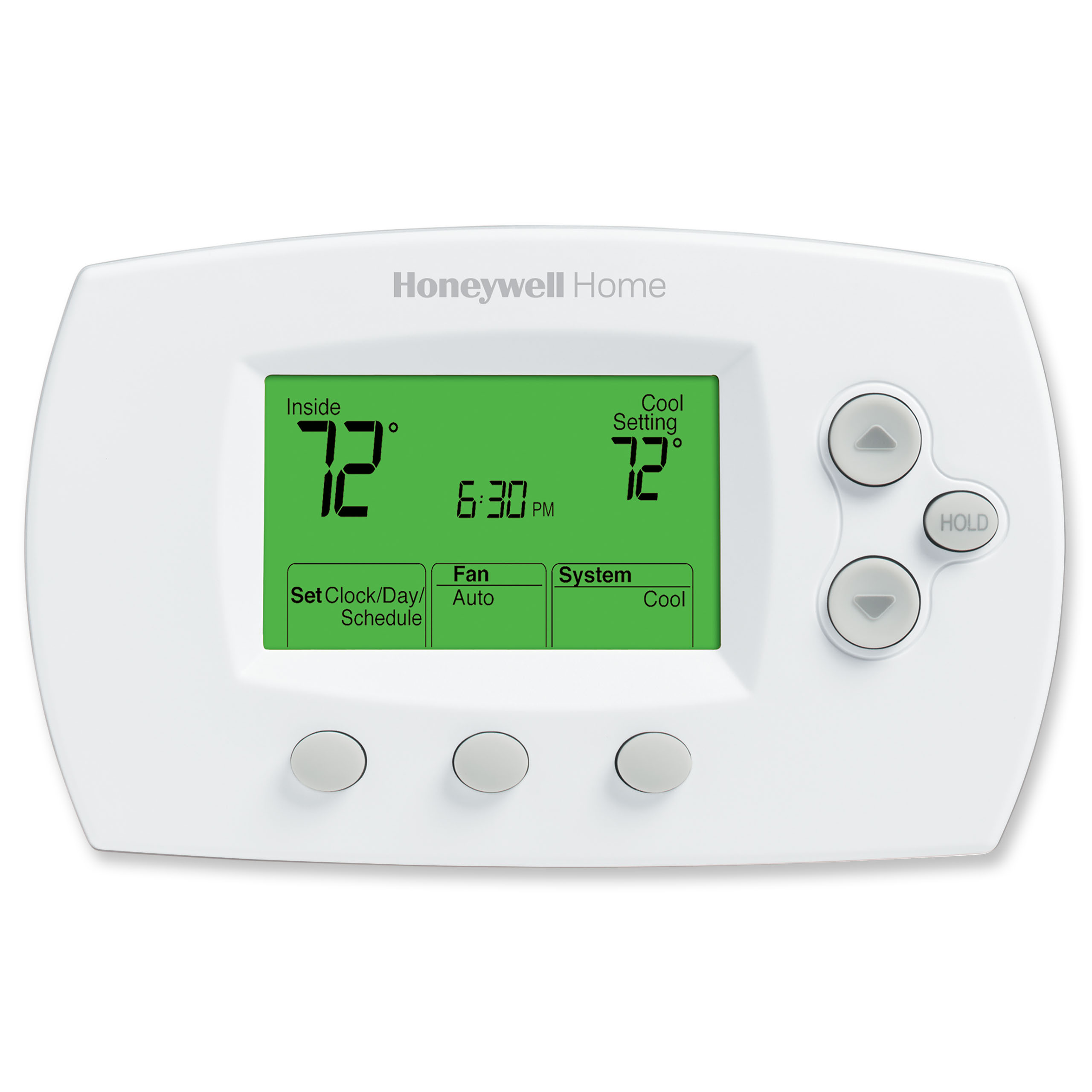

- Thermostat
- Type 5-1-1/5-2 Day Digital Programmable, 2-Heat / 1-Cool (Heat Pump), 2-Heat / Cool (Conventional), Auto / Manual Changeover
- Cover Type Rectangular Horizontal
- Color Premier White
- Voltage Rating 20 to 30 Volt AC / 750 Millivolt at 50/60 Hertz
- Current Rating 0.02 to 1 Amp (Cool / Heat), 0.02 to 0.5 Amp (Fan)
- Size 5-13/16 Inch Width x 1-1/2 Inch Depth x 3-9/16 Inch Height
- Display Size 5.09 Square Inch
- Sensor Element Thermistor
- Humidity Range 5 to 90 Percent Relative (Non-Condensing)
- Terminal Designations RC, R, W (O / B), W2 (AUX), Y, Y2 (E), G, L, C
- Power Method Battery / Hardwired
- Ambient Temperature 32 to 120 Deg F
- Setting Temperature Rating 40 to 90 Deg F (Heat), 50 to 99 Deg F (Cool)
