Description

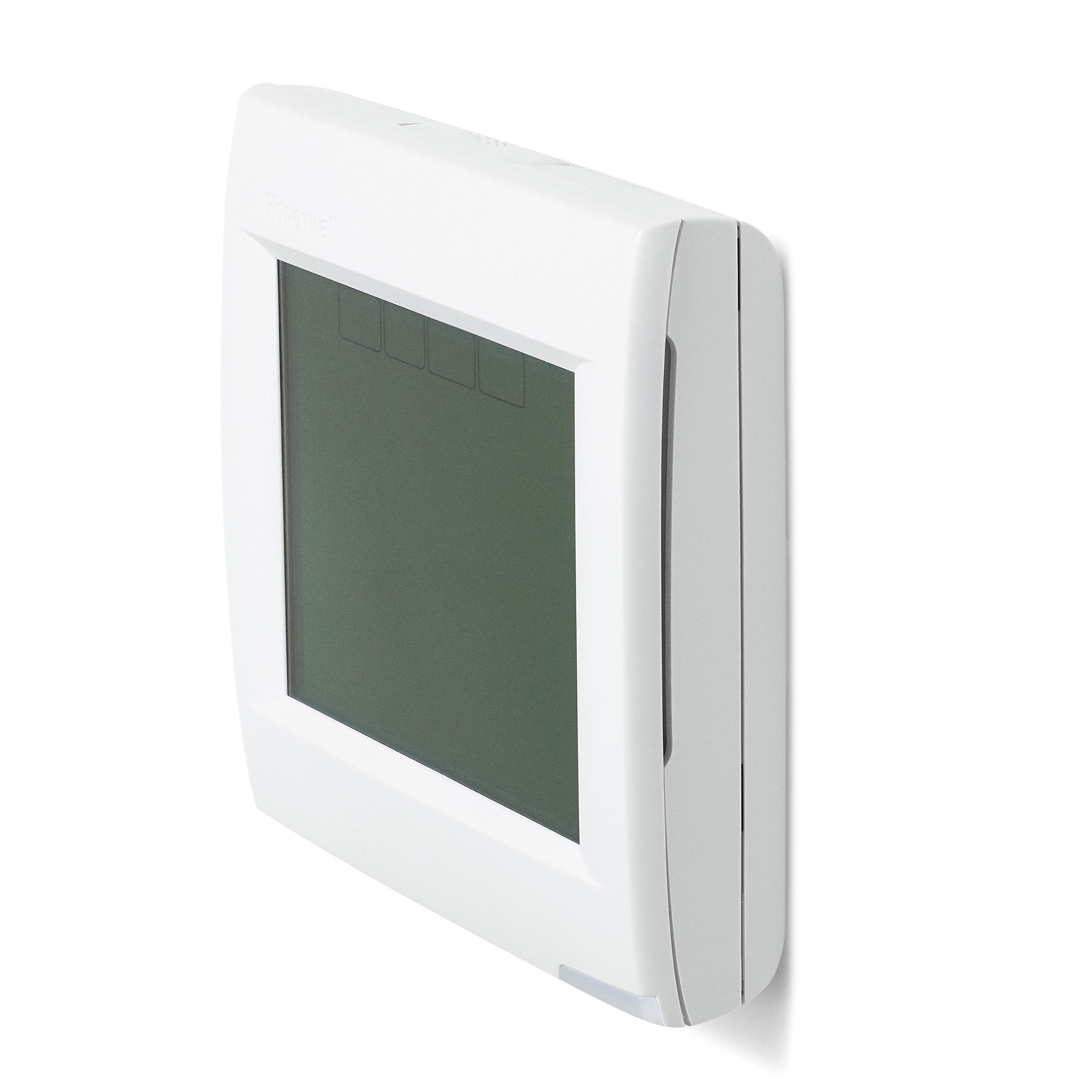

- Thermostat
- Type 7 Day Programmable / Non-Programmable, Wireless, 3-Heat / 2-Cool (Heat Pump), 2-Heat / 2-Cool (Conventional), Auto / Manual Changeover
- Color Arctic White
- Voltage Rating 18 to 30 Volt AC / 750 Millivolt at 50/60 Hertz
- Size 4-15/16 Inch Width x 1-1/8 Inch Depth x 4-5/8 Inch Height
- Display Size 10 Square Inch
- Power Method Battery / Hardwired
- Terminal Type Screw
- Switch Positions Heat-Off-Cool-Auto (System), Auto-On-Circ (Fan)
- Terminal Designation R, Rc, C, W (O / B), W2 (Aux / E), Y, Y2, G, A-L / A, K, S1
- Ambient Temperature 32 to 120 Deg F
- Setting Temperature Rating 40 to 90 Deg F (Heat), 50 to 99 Deg F (Cool)
