Description

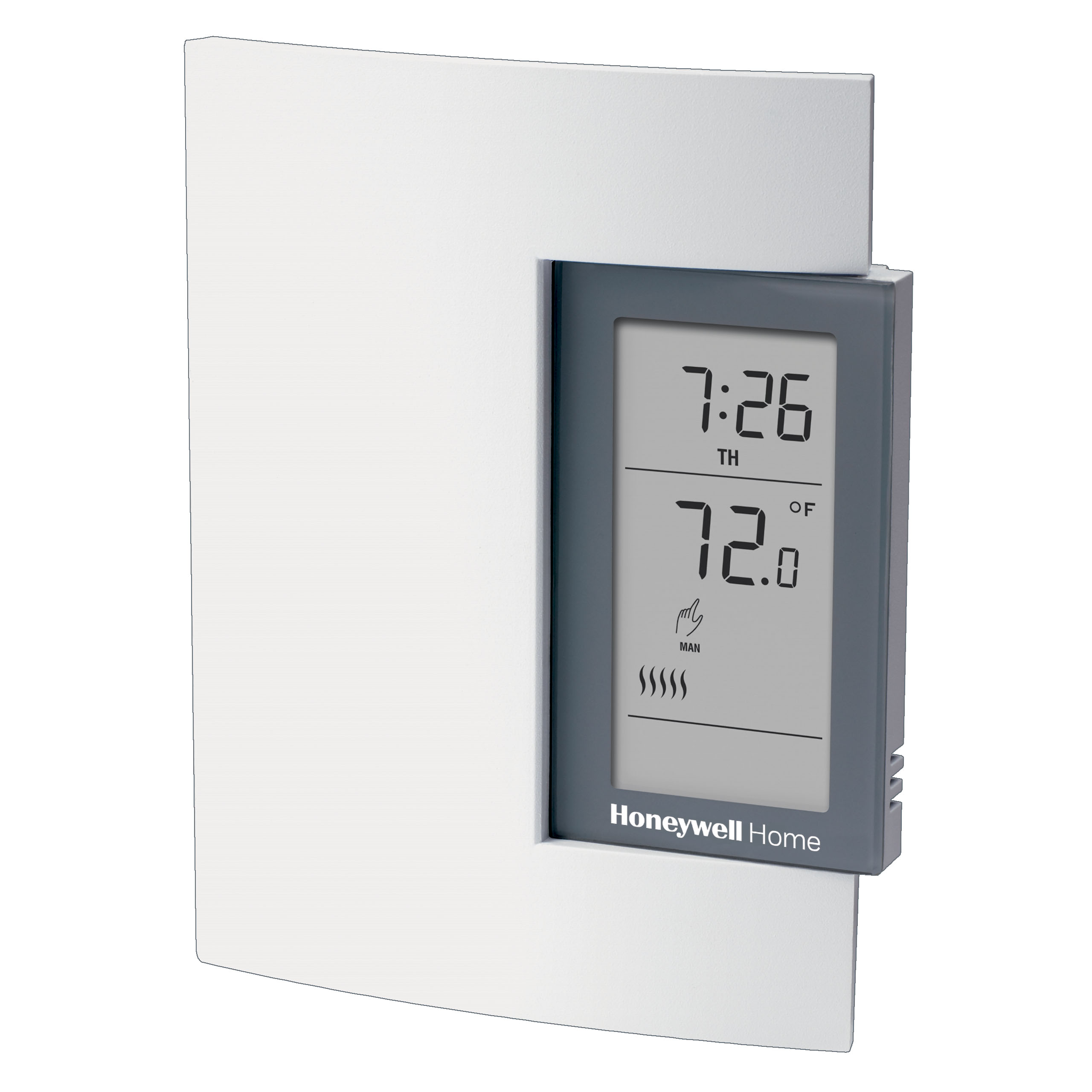

- Thermostat
- Type 7 Day Programmable, 1-Heat
- Cover Type Rectangular Vertical
- Color White
- Voltage Rating 120/240 Volt AC, 24/30 Volt DC
- Current Rating 5 Amp (Resistive), 2 Amp (Inductive)
- Switch Type Relay
- Temperature Rating 32 to 122 Deg F
- Size 3.8 Inch Width x 1 Inch Depth x 4.9 Inch Height
- Approval UL, CSA
- Sensor Element Thermistor
- Electrical Connection Type Screw Terminal
- Power Method 2 AA Battery
- Terminal Designations R, W
- Humidity 0 to 95 Percent Relative (Non-Condensing)
- Setting Temperature Rating 40 to 85 Deg F
- Application Central Heating (Conventional), Baseboard, Convector, Fan-Forced Heater, Radiant Ceiling
