Description

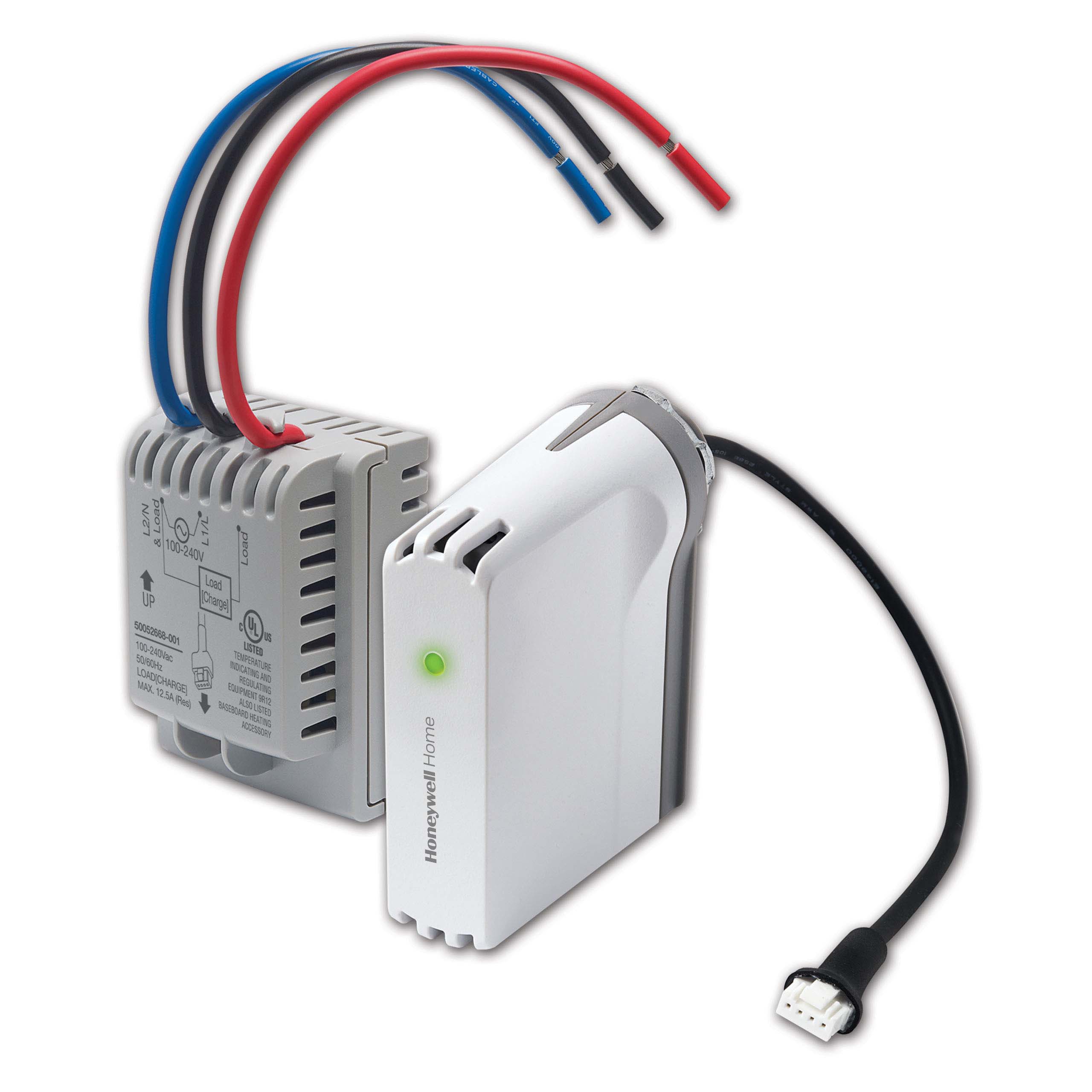

- Electrical Heat Equipment Interface Module
- Item Electrical Heat Equipment Interface Module, Enabled
- Size 2.49 Inch Width x 1.28 Inch Depth x 3.03 Inch Height (Relay), 2.63 Inch Width x 1.16 Inch Depth x 2.89 Inch Height (Antenna)
- Mounting Type Vertical
- Color / Finish Gray (Relay), White and Light Almond (Antenna)
- Used On Item Thermostat Kit
- Used On Model / Brand YTL9160AR1000, EConnect
- Applicable Standard UL
- Supply Voltage 100 to 240 Volt AC
- Current Rating 0.4 Amp (Resistive Only) 100 Watt at 240 Volt AC, 50 Watt at 120 Volt AC (Minimum Load) / 12.5 Amp (Resistive Only), 3000 Watt at 240 Volt AC, 1500 Watt at 120 Volt AC (Maximum Load)
- Frequency Rating 50/60 Hertz
- Switch Type Relay
- Switching Action SPST
- Operating Temperature -20 to 60 Deg C
- Humidity 5 to 95 Percent Relative (Non-Condensing)
- Power Method Hardwired
- Electrical Connection 6 Inch Tinned Copper Lead Wire
- Includes Electrical Heat Equipment Interface, White and Light Almond Antenna Cover
- Application Electric Heating, Baseboard Heater, Convector / Fan-Forced Heater
