Description

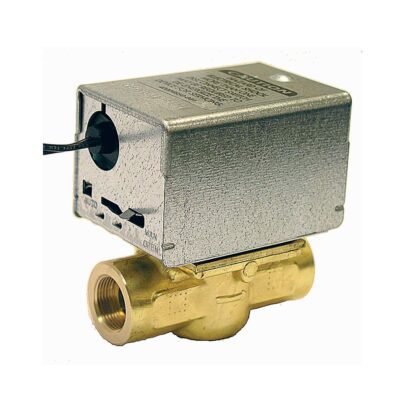

- Motorized Zone Valve
- Type 2-Way, Straight-Through
- Nominal Size 1/2 Inch
- End Connection Threaded x Threaded
- Actuation Type 2-Position, Spring Return to Close
- Valve Position Normally Closed
- Body Material Brass
- Valve Timing 15 Second (Open)
- Input Supply Rating 9.6 Volt Amp at 120 Volt AC 60 Hertz 0.08 Amp
- Temperature Rating 40 to 200 Deg F (Fluid)
- Pressure Rating 20 PSI (Close-Off), 125 PSI (Static)
- Media Handled Hot / Chilled Water
- Inclusions / Features Line Voltage, Manual Opener
- Application Hydronic Control, Heating and Cooling
- Applicable Standard UL, CSA
- Overall Dimension 3-23/32 Inch Width x 2-3/8 Inch Depth x 4 Inch Height
- Flow Capacity 3.5 Cv
- Electrical Connection 18 Inch Lead
- Material Brass (Seat), Stainless Steel (Stem), EPDM Rubber (Packing), Buna-N Rubber Ball (Plug / Ball / Disc)
- Ambient Temperature 125 Deg F
- Relative Humidity Range 5 to 95 Percent (Non-Condensing)
