Description

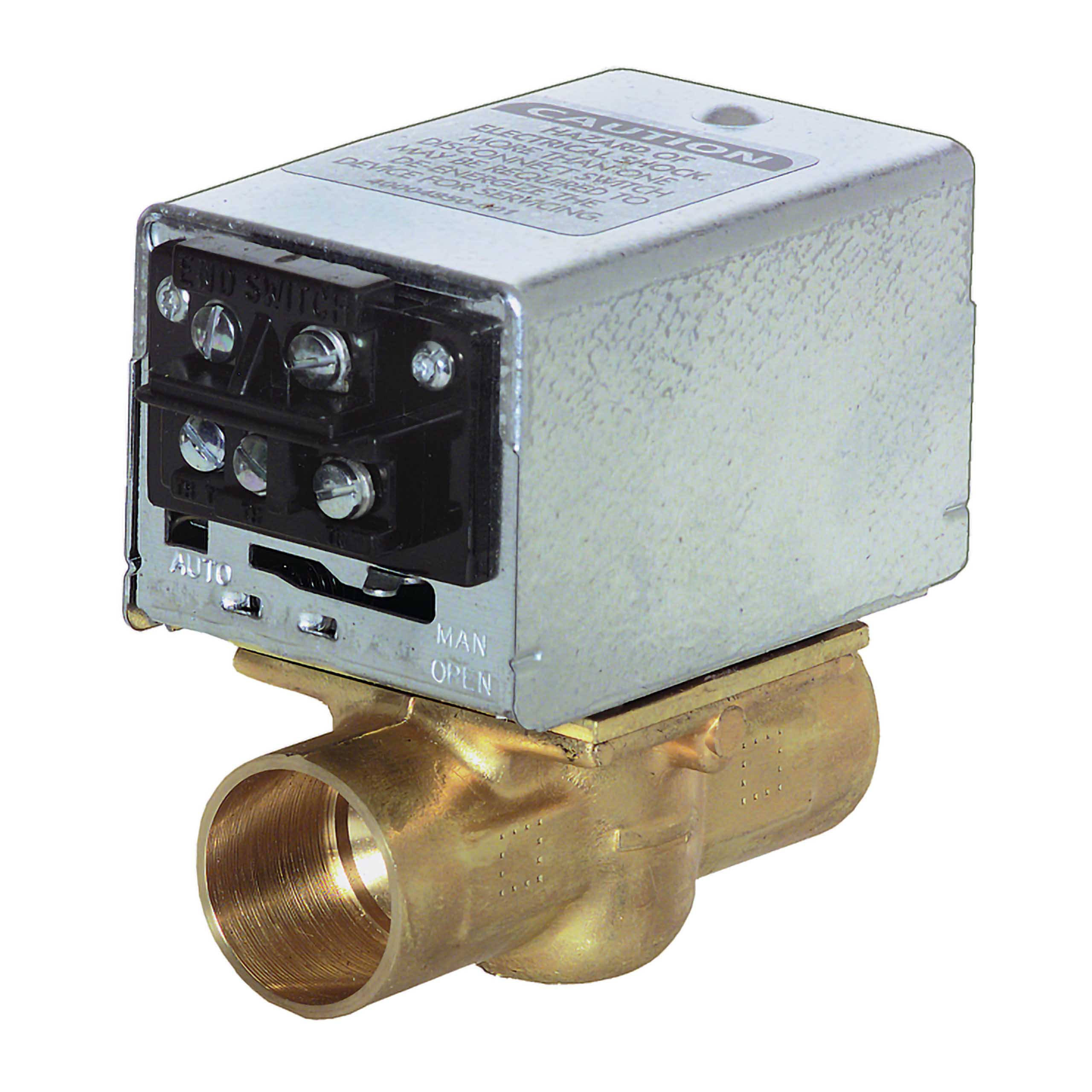

- Motorized Zone Valve
- Type 2-Way, Straight-Through
- Nominal Size 3/4 Inch
- End Connection Soldered x Soldered
- Actuation Type 2-Position, Spring Return to Close
- Valve Position Normally Closed
- Body Material Brass
- Valve Timing 15 Second (Open)
- Input Supply Rating 7.7 Volt Amp at 24 Volt AC 50/60 Hertz 0.32 Amp
- Temperature Rating 50 to 200 Deg F (Fluid)
- Pressure Rating 20 PSI (Close-Off), 125 PSI (Static)
- Media Handled Hot Water
- Inclusions / Features Low Voltage, Manual Opener, SPST End Switch
- Application Hydronic Control
- Applicable Standard UL, CSA
- Overall Dimension 3-1/2 Inch Width x 2-3/8 Inch Depth x 4 Inch Height
- Flow Capacity 3.5 Cv
- Electrical Connection 18 Inch Lead
- Material Brass (Seat), Stainless Steel (Stem), EPDM Rubber (Packing), Buna-N Rubber Ball (Plug / Ball / Disc)
- Ambient Temperature 125 Deg F
- Relative Humidity Range 5 to 95 Percent (Non-Condensing)
