Description

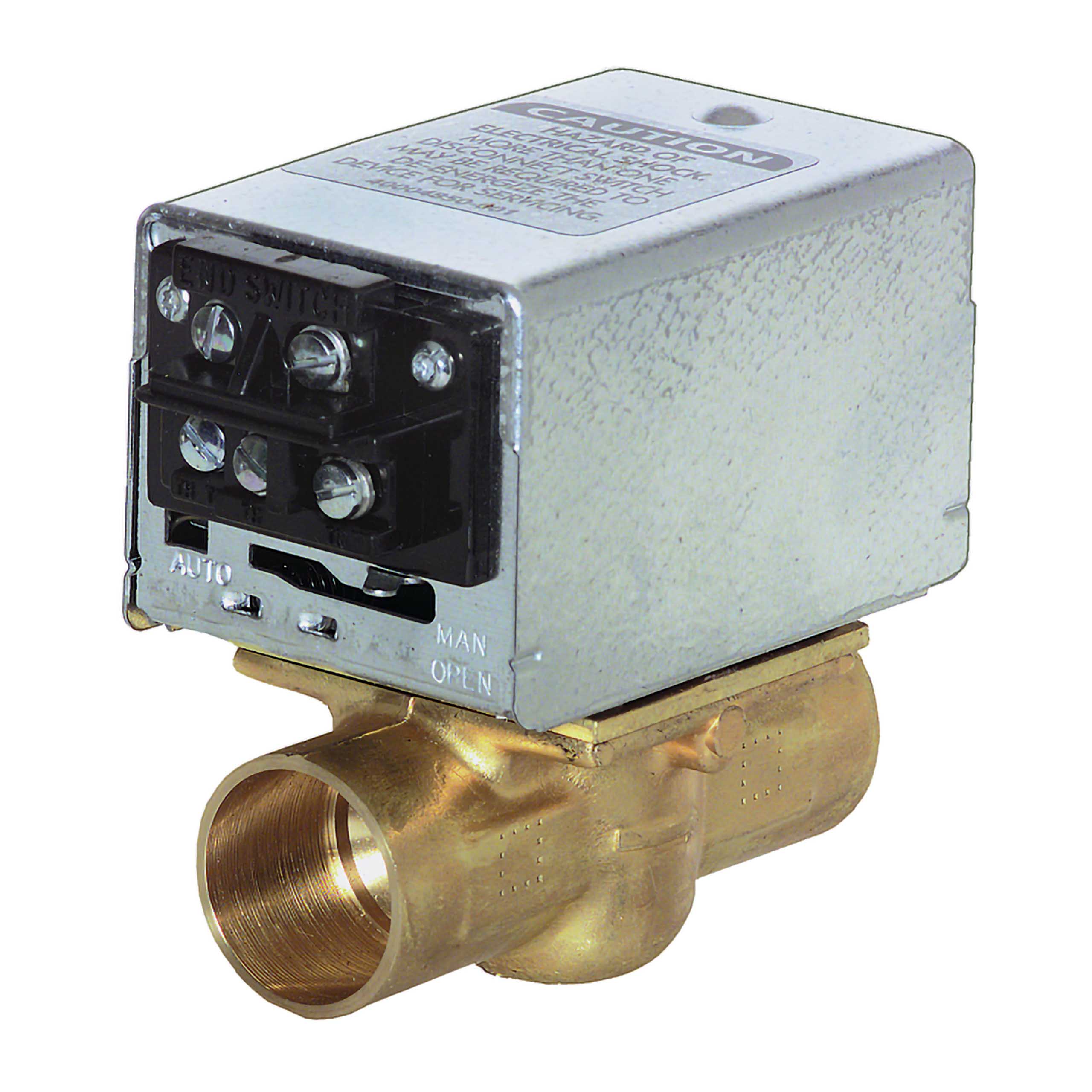

- Motorized Zone Valve
- Type 2-Way, 2-Position, Straight-Through, Low Voltage
- Nominal Size 3/4 Inch
- End Connection Soldered x Soldered
- Actuation Type Electric
- Valve Position NC
- Body Material Brass
- Valve Timing 15 Second
- Input Supply Rating 24 Volt AC 50/60 Hertz 0.32 Amp
- Temperature Rating 125 Deg F
- Pressure Rating 8 PSI (Close-Off), 125 PSI (Static)
- Media Handled Hot Water
- Inclusions / Features Manual Opener
- Application Hydronic Control
- Applicable Standard UL, CSA
- Overall Dimension 3-1/2 Inch Width x 2-3/8 Inch Depth x 4 Inch Height
- Flow Capacity 8 Cv
- Terminal Type Screw
- Valve Action Spring Return to Close
- Power Rating 7.7 Volt Amp
- End Switch Rating 50 Volt Amp (Pilot Duty), 4.4 Amp (Running), 26.4 Amp at 120 Volt (Inrush)
- Material Brass Seat, Stainless Steel Stem, Buna-N Plug / Disc, Rubber Ball
