Description

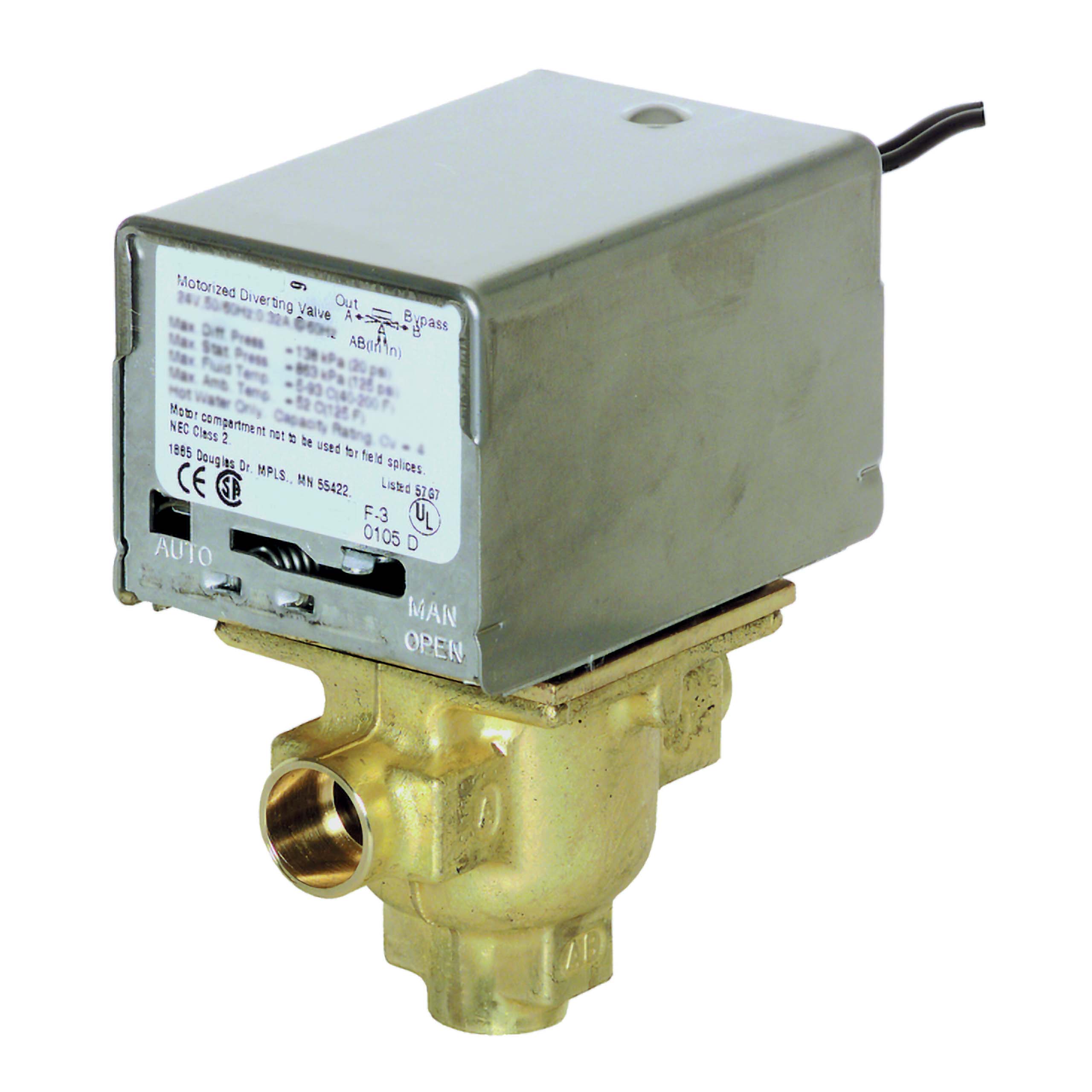

- Motorized Zone Valve
- Type 3-Way
- Nominal Size 1/2 Inch
- End Connection Soldered x Soldered
- Actuation Type 2-Position, Spring Return to Port A Close, Diverting
- Valve Position Normally Closed
- Body Material Brass
- Valve Timing 30 Second (Open)
- Input Supply Rating 7.7 Volt Amp at 24 Volt AC 50/60 Hertz 0.32 Amp
- Temperature Rating 40 to 200 Deg F (Fluid)
- Pressure Rating 20 PSI (Close-Off), 125 PSI (Static)
- Media Handled Hot Water
- Inclusions / Features Low Voltage, Manual Opener
- Application Hydronic Control
- Applicable Standard UL, CSA
- Overall Dimension 3-1/2 Inch Width x 2-3/8 Inch Depth x 4-5/8 Inch Height
- Flow Capacity 4 CV
- Electrical Connection 18 Inch Lead
- Material Brass (Seat), Stainless Steel (Stem), Buna-N Rubber (Ball / Plug / Disc), EPDM Rubber (Packing)
- Humidity 5 to 95 Percent (Non-Condensing)
