Description

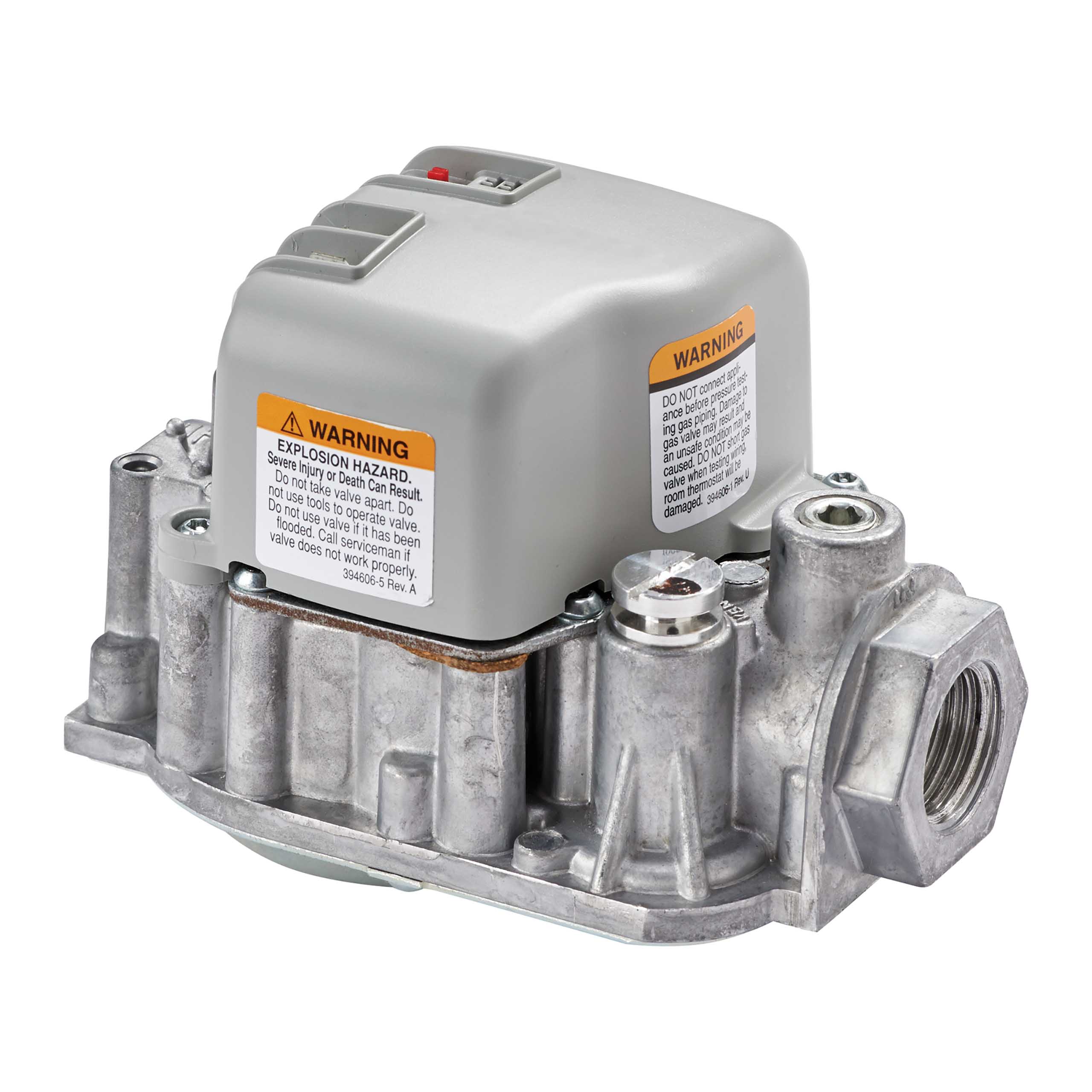

- Combination Gas Control Valve
- Type 1-Stage, Standard Opening, Direct Ignition Dual Automatic Valve, Straight-Through
- Nominal Size 1/2 Inch
- End Connection Female Threaded x Female Threaded
- End to End Distance 4.44 Inch
- Supply Connection 1/4 Inch Quick Connect Male Terminal
- Input Supply Rating 24 Volt AC at 50/60 Hertz
- Temperature Rating -40 to 175 Deg F
- Pressure Rating 1/2 PSI
- Inclusions / Features Natural to Liquid Propane Conversion Kit
- Application Gas Fired Appliance
- Applicable Standard CSA
- Overall Dimension 2.7 Inch Depth x 3.38 Inch Height
- Fuel Type Natural
- Flow Capacity 15000 to 200000 BTU / Hour
- Pressure Tapping 1/8 Inch Threaded with Plug
- Pressure Regulator Set Point 3.5 Inch WC
- Mounting Type Multi-Poise
