Description

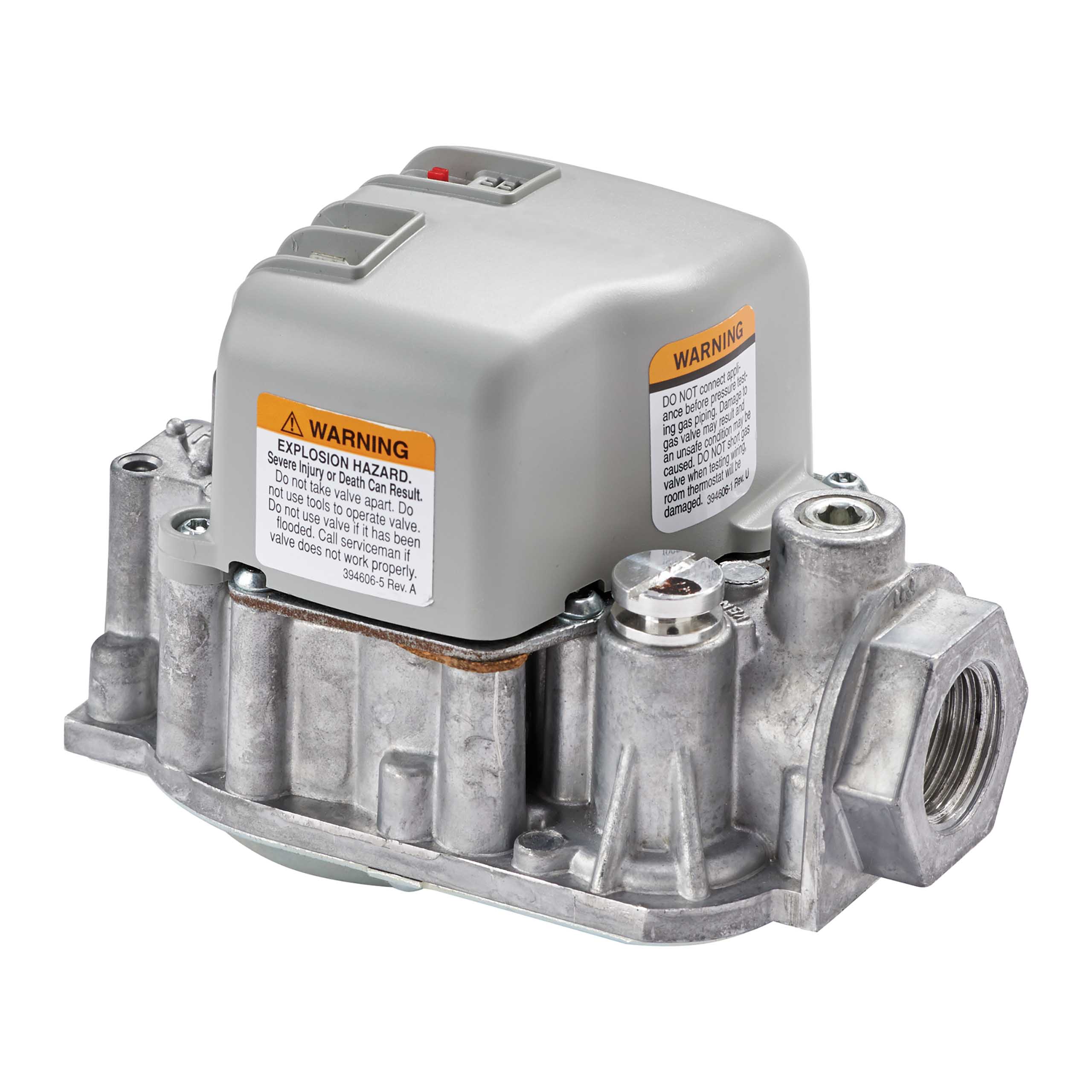

- Combination Gas Control Valve
- Type 1-Stage, Slow Opening, Dual, Automatic
- Nominal Size 1/2 Inch
- End Connection Threaded x Threaded
- End to End Distance 4.44 Inch
- Supply Connection 1/4 Inch Quick Connect Male Terminal
- Input Supply Rating 24 Volt AC at 50/60 Hertz
- Temperature Rating -40 to 175 Deg F
- Pressure Rating 1/2 PSI
- Inclusions / Features Natural to Liquid Propane Conversion Kit, Manual Valve, (2) Automatic Operators and Pressure Regulator
- Application Gas Fired Appliance, Residential Combustion Control, Hot Surface / Direct Spark System
- Applicable Standard UL, CSA
- Overall Dimension 2.7 Inch Depth x 3.38 Inch Height
- Connection Type 1/4 Inch Quick Connect Male Terminal
- Body Pattern Straight-Through
- Ignition Type Direct Ignition
- Capacity 150000 to 20000 BTU / Hour
- Pressure Tapping 1/8 Inch Threaded
- Pressure Regulator Set Point 3.5 Inch WC
