Description

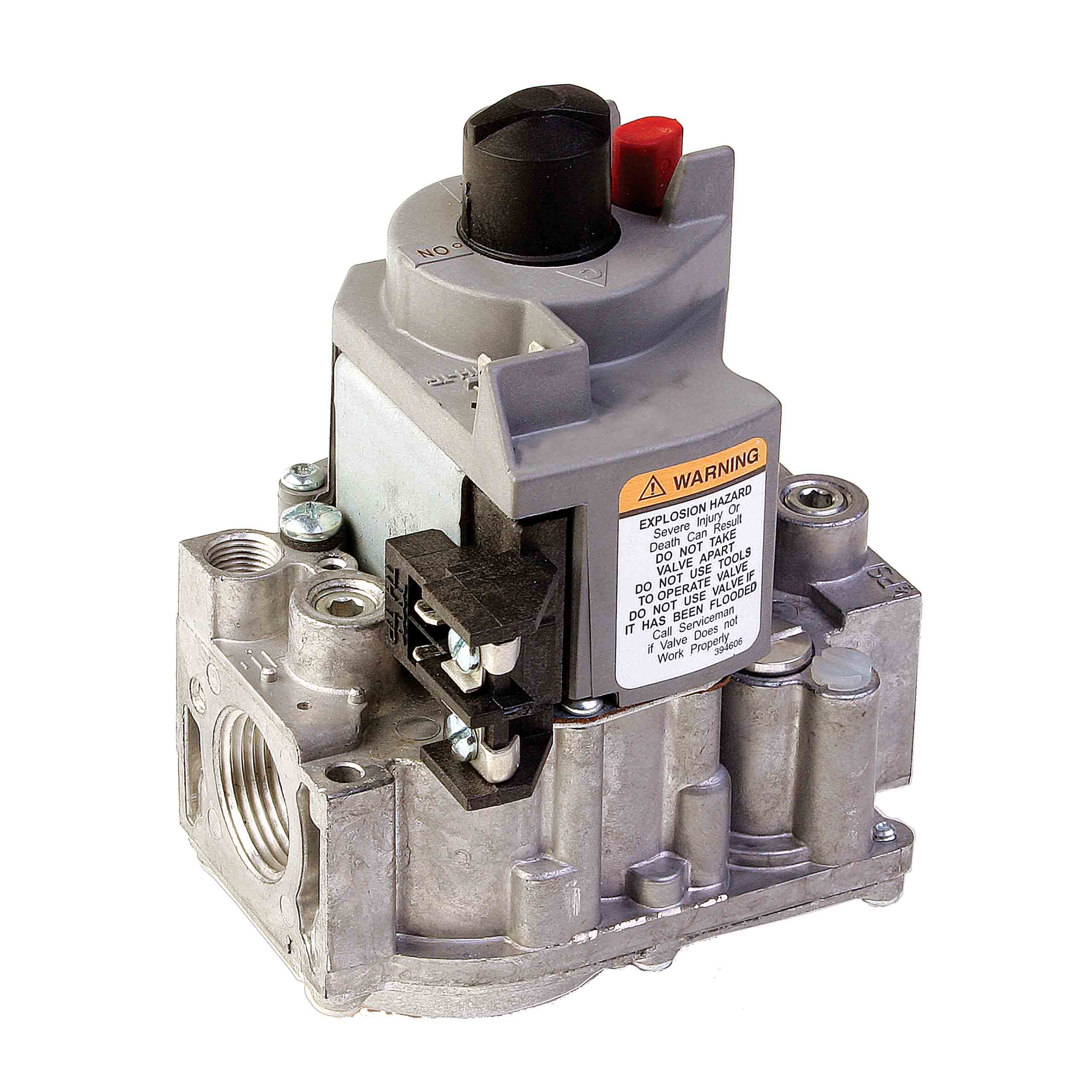

- Combination Gas Control Valve
- Type 1-Stage, Standard Opening, Standing Pilot, Straight-Through with Flange
- Nominal Size 1/2 Inch x 3/4 Inch
- End Connection Female Threaded x Female Threaded
- End to End Distance 4-1/16 Inch
- Supply Connection 1/4 Inch Quick Connect Male Terminal
- Actuator Type Solenoid, Diaphragm
- Input Supply Rating 24 Volt AC at 60 Hertz
- Temperature Rating 0 to 175 Deg F
- Pressure Rating 1/2 PSI
- Inclusions / Features Natural to Liquid Propane Conversion Kit, (1) 3/4 Inch x 1/2 Inch Reducer Bushing, (1) 3/4 Inch Straight Flange, Q340 Thermocouple, ECO Adapter
- Application Universal Gas Fired Standing Pilot Appliances
- Applicable Standard UL, CSA
- Overall Dimension 2-11/16 Inch Depth x 5-3/8 Inch Height
- Fuel Type Natural
- Flow Capacity 30000 to 290000 BTU / Hour
- Pressure Tapping Size 1/8 Inch Threaded with Plug
- Pressure Regulator Set Point 3.5 Inch WC
