Description

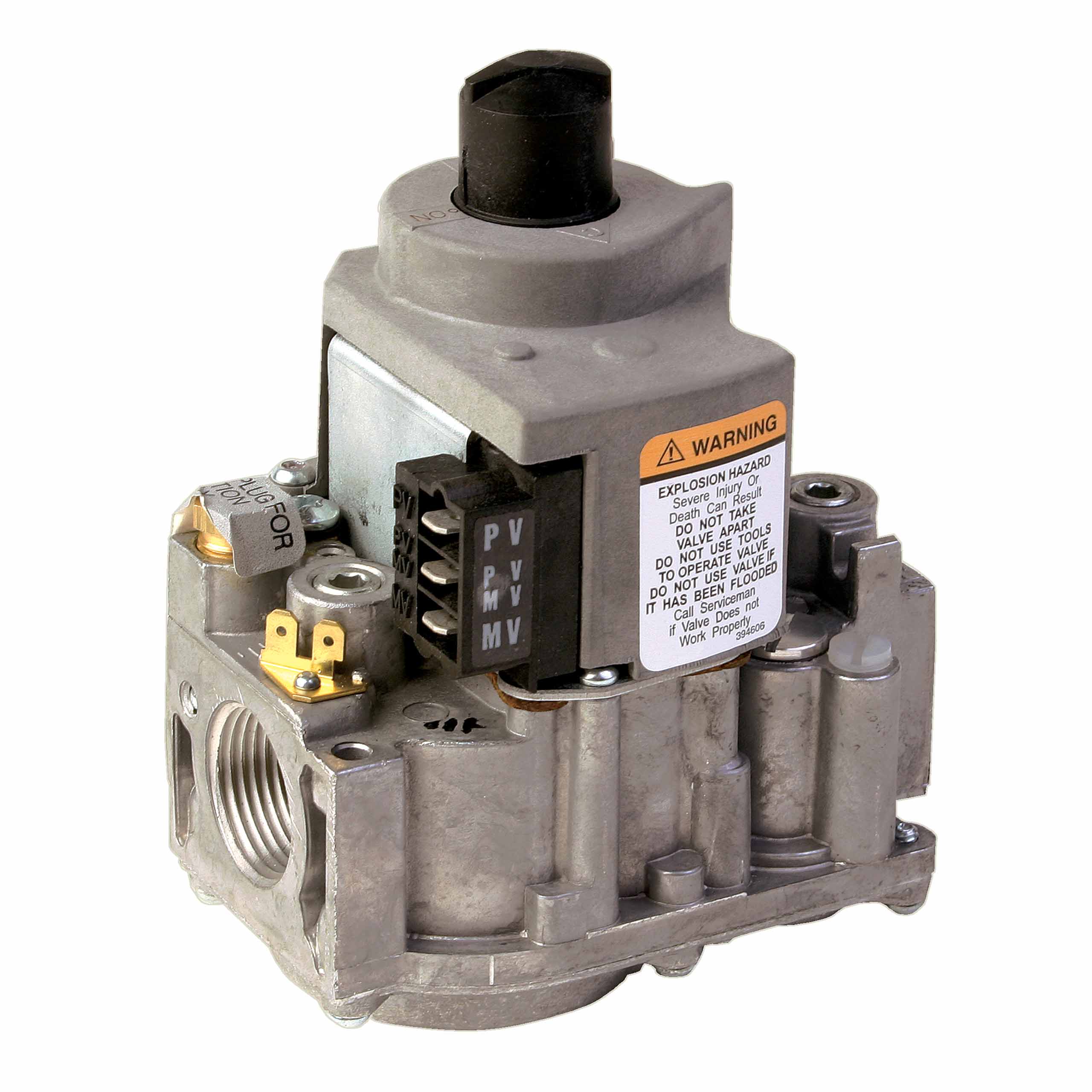

- Combination Gas Control Valve
- Type 2-Stage, Intermittent Pilot, Low Voltage, Standard Opening
- Nominal Size 3/4 Inch
- End Connection Threaded x Threaded
- End to End Distance 2-11/16 Inch
- Supply Connection 1/4 Inch Quick Connect Male Terminal
- Actuator Type Solenoid, Diaphragm
- Input Supply Rating 24 Volt AC at 60 Hertz
- Temperature Rating -40 to 175 Deg F
- Pressure Rating 1/2 PSI
- Inclusions / Features Natural to Liquid Propane Conversion Kit, (2) 3/4 Inch x 1/2 Inch Reducer Bushing, Safety Shut-Off, Manual Valve, (2) Automatic Operator, Pressure Regulator and Pilot Adjustment
- Application Gas Fired Appliance, Residential Combustion Control
- Applicable Standard UL, CSA
- Overall Dimension 4-11/16 Inch Depth x 5-3/8 Inch Height
- Body Pattern Straight-Through
- Ignition Type Intermittent Pilot
- Capacity 300000 BTU / Hour
- Pressure Tapping 1/8 Inch Threaded
- Pressure Regulator Set Point 1.7 (Low) / 3.5 (High) Inch WC
- Mounting 0 to 90 Degree Vertical Installation
