Description

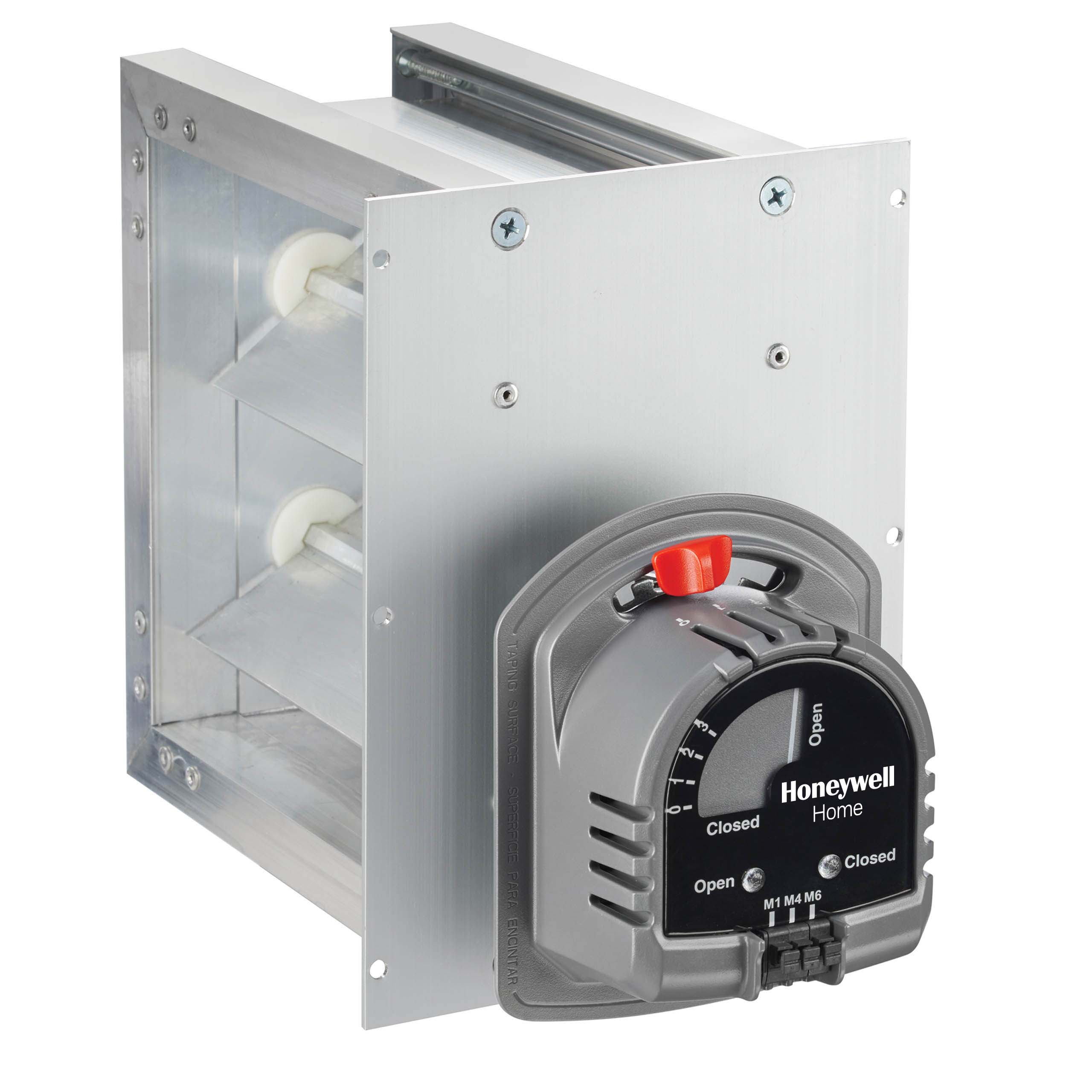

- Zone Control Damper
- Type Rectangular, Parallel Blade
- Duct Size 8 Inch x 20 Inch
- Blade Material Extruded Aluminum
- Inclusions / Features Spring Return, Mechanical Visual Position Indicator, Fail Safe, Normally Open Operation
- Motor Rating 24 Volt AC at 60 Hertz 8 Volt Amp
- Motor Torque Rating 71 Inch-Ounce
- Temperature Rating 40 to 140 Deg F
- Pressure Drop Less than 0.0329 Inch WC at 800 Foot per Minute
- Motor Angular Rotation 90 Degree
- Less than 1 Percent at 1/2 Inch WC
- Maximum Static Pressure Rating 1 Inch WC
- Motor Mounting Type Bottom
- Motor Type Power Closed, Spring Open
- Motor Timing 30 Second (Power Open) / 10 Second (Spring Return)
- Wires to Motor Terminal M1-Power, M6 Common, M4 (Optional) LED Indication
- Application Parallel Blade Damper
