Description

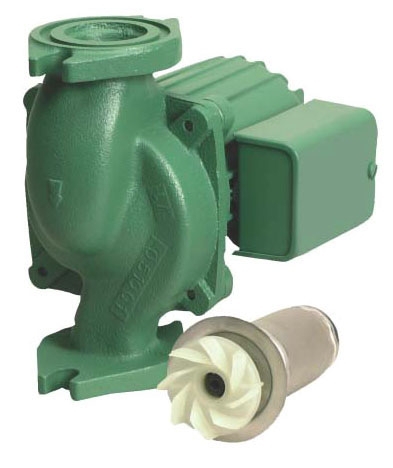

- Cartridge Circulator
- Type Compact, Direct Drive, Horizontal Mount
- Suction Size 3/4 Inch, 1 Inch, 1-1/4 Inch, 1-1/2 Inch
- Discharge Size 3/4 Inch, 1 Inch, 1-1/4 Inch, 1-1/2 Inch
- End Connection Flanged x Flanged
- Overall Dimensions 7-1/4 Inch Length x 5-3/8 Inch Width x 6-3/8 Inch Height
- Flow Rate 0 to 32 GPM
- Discharge Head 0 to 10 Foot
- Casing Material Cast Iron
- Shaft Material Ceramic
- Impeller Material Non-Metallic
- Impeller Design Closed
- Warranty 3 Year from Date of Manufacture
- Power Rating 1/8 HP
- Input Supply Rating 115 Volt AC at 60 Hertz 1-Phase 1.1 Amp
- Speed Rating 3250 RPM
- Temperature Rating 40 to 230 Deg F
- Pressure Rating 150 PSI
- Motor Type Permanent Split Capacitor, Impedance Protected
- Inclusions / Features Low Power Consumption, Aluminum Stator Housing, Stainless Steel Cartridge, Carbon Bearing, EPDM O-Ring and Gasket
- Exclusions Mechanical Seal
- Application Residential / Light Commercial, Medium-Head / Medium Flow Water Circulating, Hydronic / Radiant Heating, Primary-Secondary Loop, Indirect Water Heater, Chilled Water Cooling, Potable Hot Water System, Closed Loop System, Indoor
- Applicable Standard UL (Canada and US), NSF / ANSI 372
- Lead-Free
- Flange Type Standard
