Description

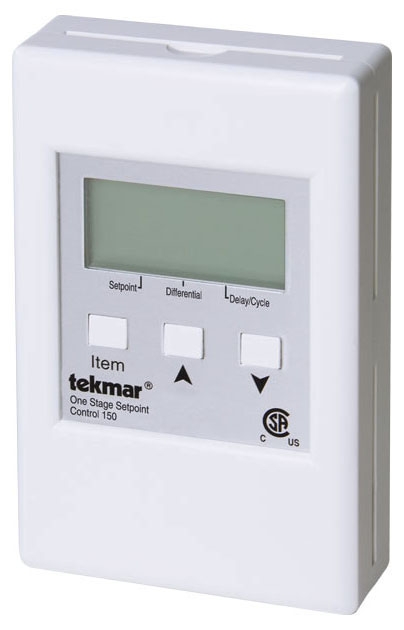

- Set Point Control
- Item Set Point Control
- Type Programmable, Digital, 1-Stage
- Switch Type DIP
- Overall Dimensions 2-7/8 Inch Width x 7/8 Inch Depth x 4-3/4 Inch Height
- Current Rating 0.02 Amp
- Input Supply Rating 24 Volt AC 50/60 Hertz 24 Volt DC 1.3 Volt Amp
- Inclusions / Features 10 Kilo Ohm at 77 Deg F NTC Thermistor, Universal Sensor
- Application Indoor, Heating / Cooling System
- Applicable Standard UL, CAS (Canada and US)
- Control Type Microprocessor
- Enclosure Type NEMA 1
- Enclosure Material White PVC
- Ambient Temperature -20 to 120 Deg F
- Humidity 90 Percent RH (Non-Condensing)
- Time Delay 0 to 19 Minute 50 Second (Bang / Bang)
- Cycle Length 30 Second to 19 Minute 50 Second (PWM)
- Operating Mode Heating / Cooling
- Electrical Rating 2 Volt Amp at 24 Volt AC (Demand), 1/6 HP at 240 Volt AC 5 Amp (Relay)
