Description

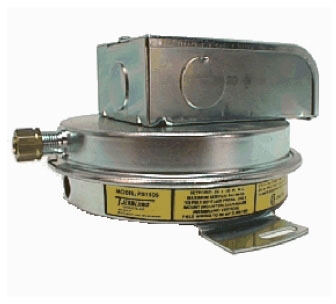

- In-Line Draft Inducer Fan Proving Switch
- Type Fan Proving Switch
- Used On In-Line Draft Inducer
- Overall Dimension 5 Inch Diameter x 3 Inch Height
- Maximum Pressure 1/2 PSI
- Operating Temperature Range -40 to 190 Deg F
- Mounting Position Diaphragm Vertical
- Power Rating 125 Volt Amp Pilot Duty at 24 Volt AC, 300 Volt Amp Pilot Duty at 115 to 277 Volt AC
- Current Rating 15 Amp Non-Inductive at 277 Volt AC
- Electric Switch Type SPST, Normally Open, Snap Acting
- Electric Connector #6-32 Screw Terminal with Cup Washer
- Control Set Point Non-Adjustable
- Material Zinc Plated Steel
