Description

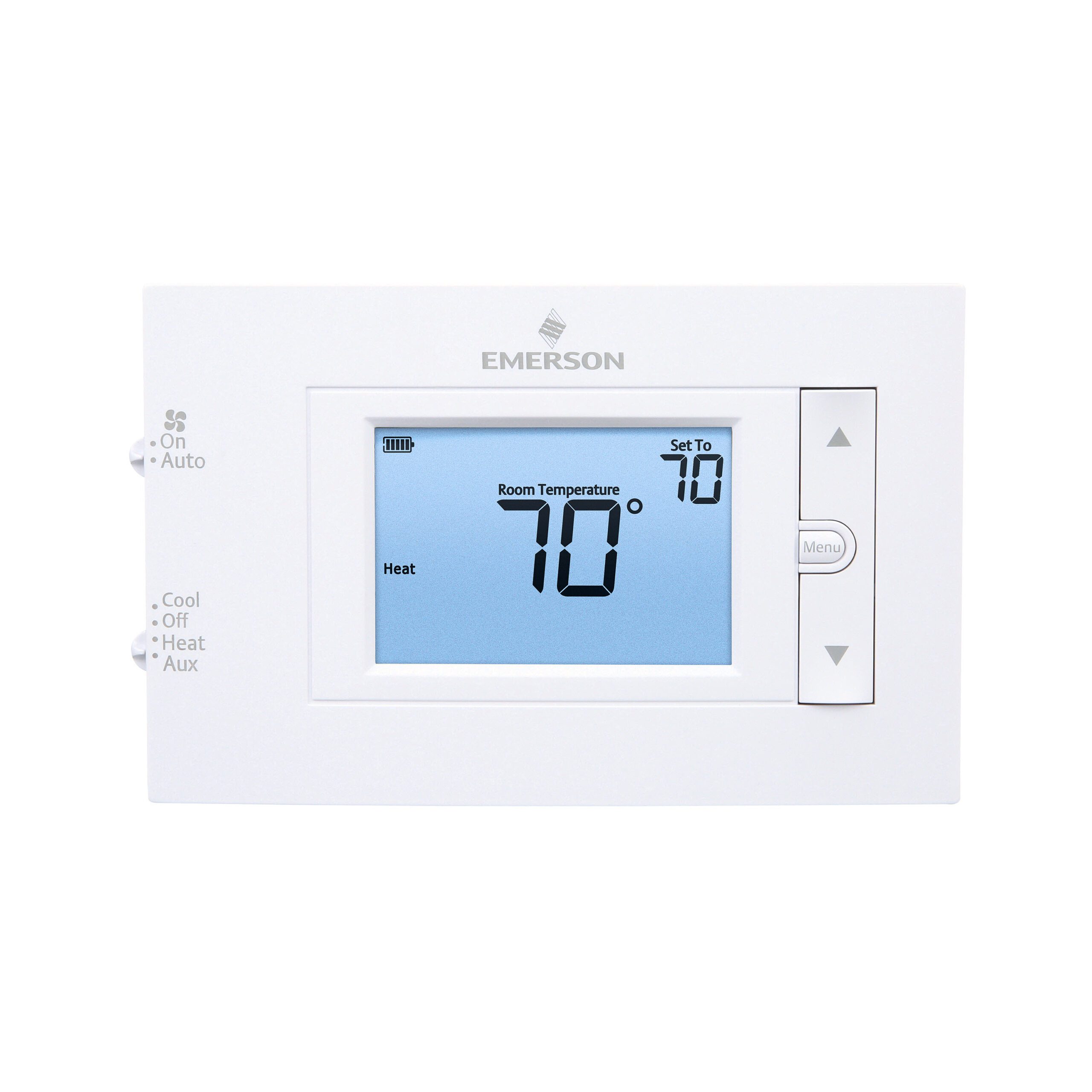

- Thermostat
- Type Non-Programmable, 1-Heat / 1-Cool (Conventional / Heat Pump), 1-Stage
- Cover Type Rectangular Horizontal
- Voltage Rating 30 Volt AC (Battery), 24 Volt AC at 50/60 Hertz (Hardwire)
- Current Rating 1 to 1.5 Amp (Load Terminal)
- Temperature Rating 32 to 105 Deg F
- Size 6 Inch Width x 1-1/8 Inch Depth x 3-3/4 Inch Height
- Display Size 5 Square Inch
- Set Point Temperature 45 to 99 Deg F
- Display Temperature 32 to 99 Deg F
- Terminal Designation RC, RH, C, W, Y, O / B, G
- Humidity 90 Percent (Non-Condensing)
- Application Gas, Oil, Electric, Millivolt Compatible
- Applicable Standard NEC Class II
