Description

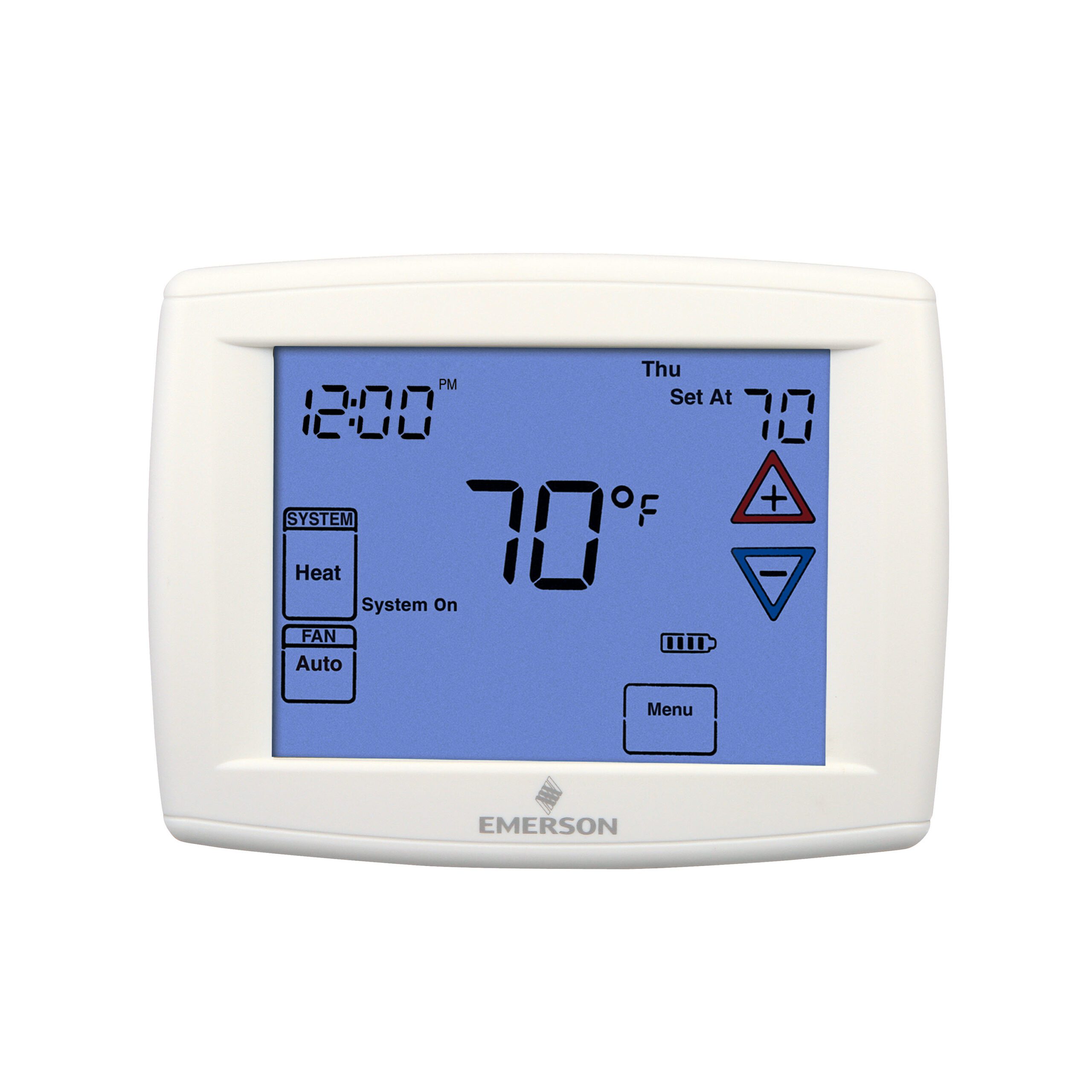

- Thermostat
- Type Universal, 7/5+1+1 Day Programmable / Non-Programmable, Touchscreen, Remote Sensor, 1-Heat / 1-Cool (1-Stage), 2-Heat / 2-Cool (Multi-Stage), 4-Heat / 2-Cool (Heat Pump)
- Cover Type Rectangular Horizontal
- Voltage Rating 30 Volt AC (Battery), 24 Volt AC at 50/60 Hertz (Hardwire)
- Current Rating 1.5 to 2.5 Amp (Load Terminal)
- Temperature Rating 32 to 105 Deg F
- Size 5.9 Inch Width x 1.2 Inch Depth x 4.6 Inch Height
- Display Size 12 Square Inch
- Display Color Blue
- Set Point Temperature 45 to 99 Deg F
- Terminal Designation RC, RH, C, W / E, W2, Y, Y2, O / B, L, G, +, S, -, 6, DHM, HM
- Humidity 90 Percent (Non-Condensing)
- Application Gas, Oil, Electric, 3-Wire Zone Valve, Millivolt Compatible
- Applicable Standard NEC Class II
