Description

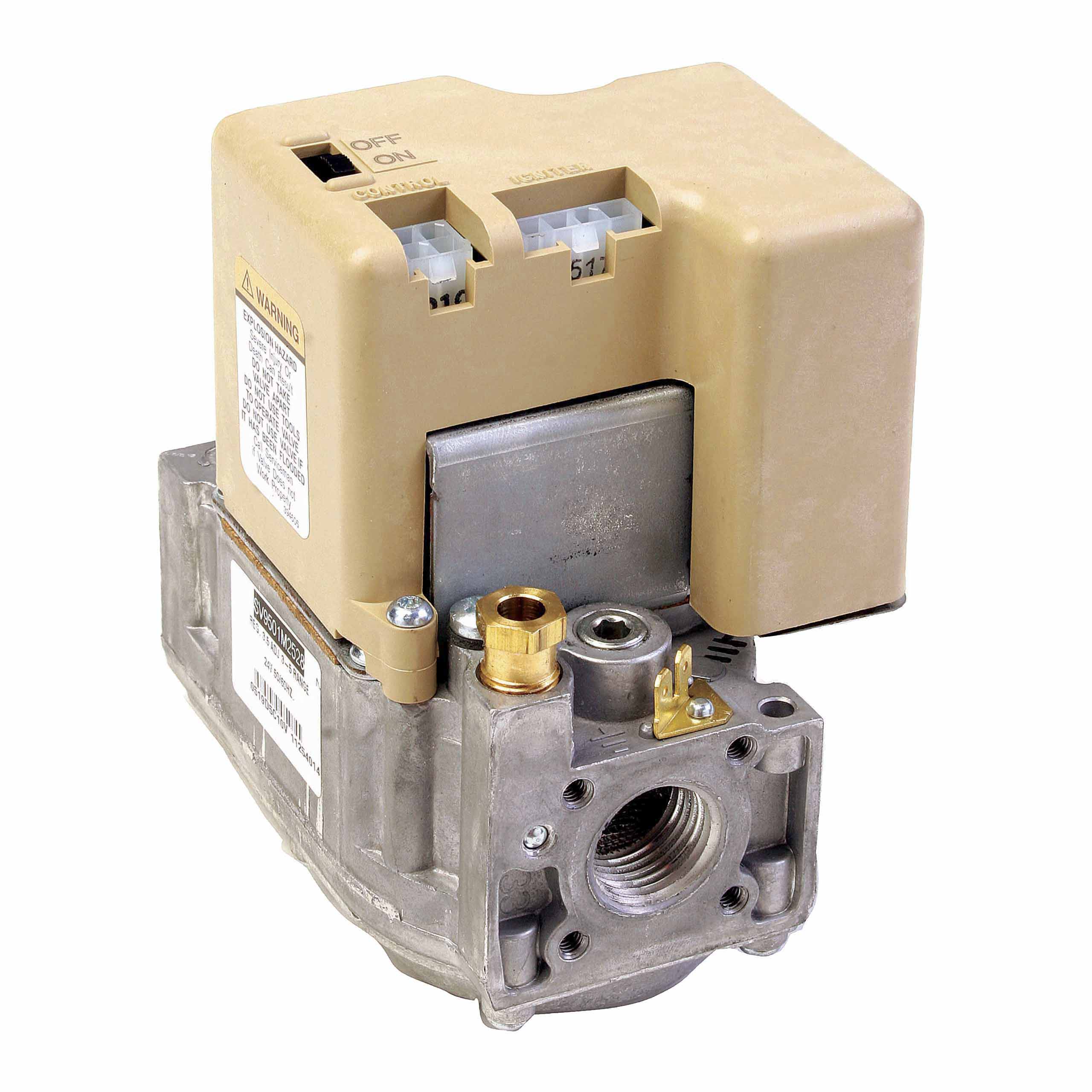

- Gas Valve
- Type Standard Opening, Straight-Through
- Nominal Size 1/2 Inch
- End Connection Threaded x Threaded
- End to End Distance 3.2 Inch
- Input Supply Rating 24 Volt AC at 50/60 Hertz
- Temperature Rating -40 to 175 Deg F
- Pressure Rating 1/2 PSI
- Inclusions / Features Natural to Liquid Propane Conversion Kit, Extension Harness
- Application Residential Furnace, Rooftop Furnace, Residential Boiler, Unit / Infrared / Space Heater, Commercial Cooking Unit
- Applicable Standard CSA
- Overall Dimension 4.1 Inch Length x 4.9 Inch Height
- Ignition Type Intermittent Hot Surface Pilot
- Flame Failure Response Time 16 Second at 3 Microamp
- Ignition Trial Time 90 Second
- Pressure Tapping 1/8 Inch Threaded
- Pressure Regulator Set Point 3.5 Inch WC
- Mounting 0 to 90 Degree Vertical Installation
