Description

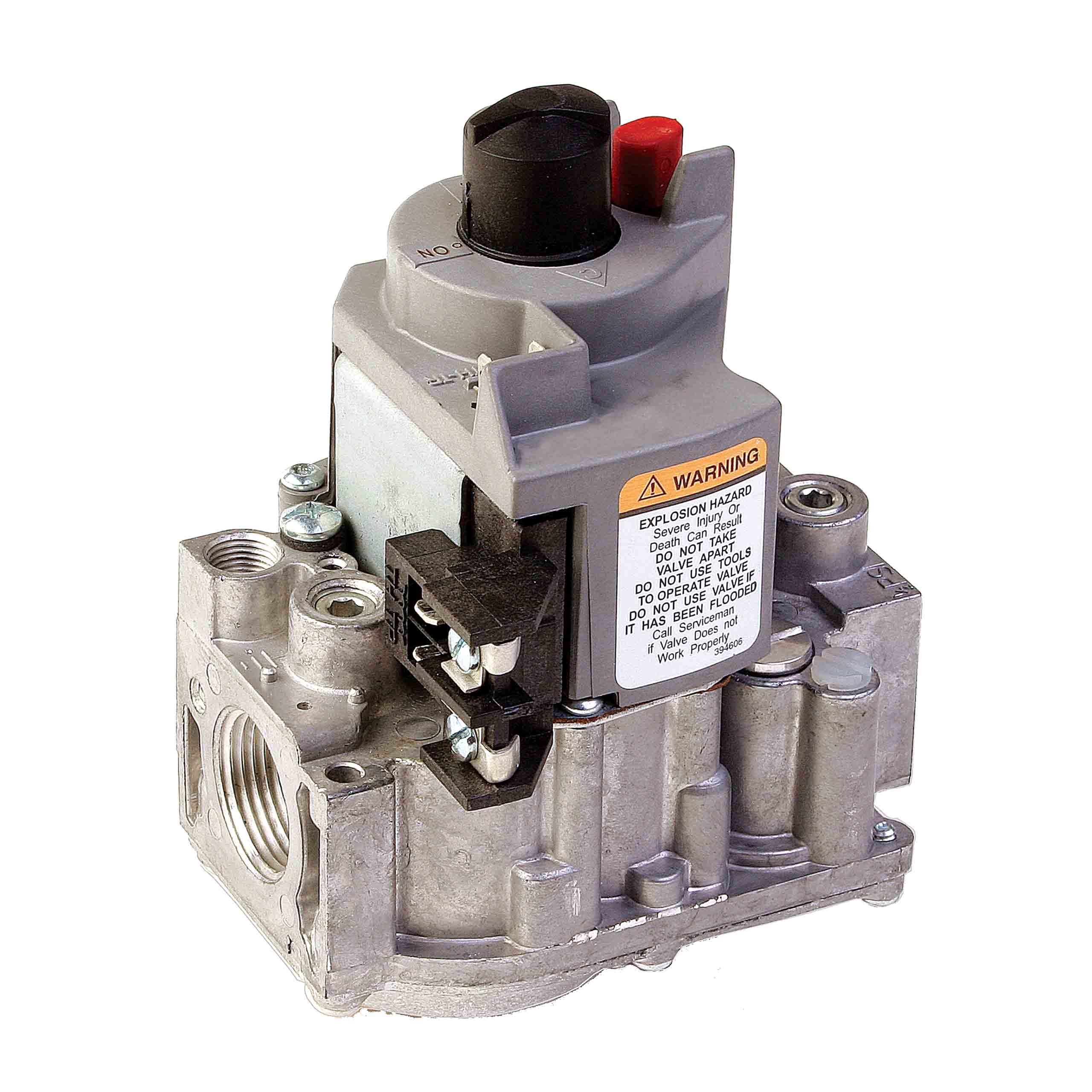

- Combination Gas Control Valve
- Type 1-Stage, Low Voltage, Standard Opening
- Nominal Size 3/4 Inch
- End Connection Threaded x Threaded
- End to End Distance 4-1/16 Inch
- Input Supply Rating 24 Volt AC at 50/60 Hertz
- Temperature Rating -40 to 175 Deg F
- Pressure Rating 1/2 PSI
- Inclusions / Features Natural to Liquid Propane Conversion Kit, (2) 3/4 Inch x 1/2 Inch Reducer Bushing, Safety Shut-Off, Manual Valve, (2) Automatic Operator, Pressure Regulator and Pilot Adjustment
- Application Gas Fired Appliance, Residential Combustion Control
- Applicable Standard UL, CSA
- Overall Dimension 2-11/16 Inch Depth x 5-3/8 Inch Height
- Connection Type 1/4 Inch Quick Connect Male Terminal
- Body Pattern Straight-Through
- Ignition Type Standing Pilot
- Capacity 200000 to 30000 BTU / Hour
- Pressure Tapping 1/8 Inch Threaded
- Pressure Regulator Set Point 3.5 Inch WC
- Mounting 0 to 90 Degree Vertical Installation
