Description

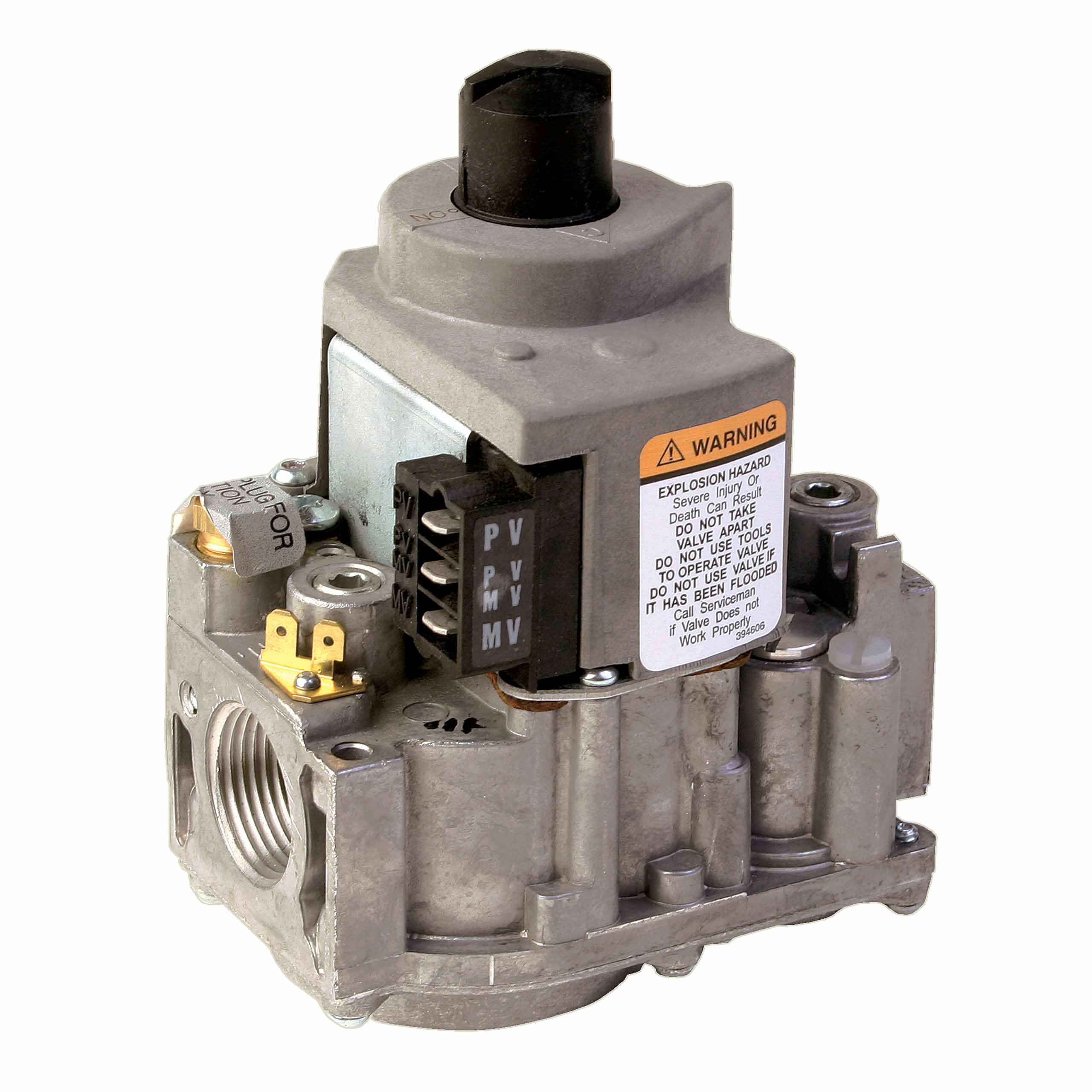

- Combination Gas Control Valve
- Type 1-Stage, Intermittent Pilot, Low Voltage, Straight-Through, Slow Opening
- Nominal Size 3/4 Inch
- End Connection Female Threaded x Female Threaded
- End to End Distance 4-1/16 Inch
- Supply Connection 1/4 Inch Quick Connect Male Terminal
- Actuator Type Solenoid, Diaphragm
- Input Supply Rating 24 Volt AC at 60 Hertz
- Temperature Rating 0 to 175 Deg F
- Pressure Rating 1/2 PSI
- Inclusions / Features (2) Automatic Operator, (1) Natural to Liquid Propane Conversion Kit, Inlet Screen, Safety Shut-Off, Manual Valve, Pressure Regulator, Pilot Adjustment
- Application Gas Fired Intermittent Pilot Appliance
- Applicable Standard UL, CSA
- Overall Dimension 2-11/16 Inch Depth x 5-3/8 Inch Height
- Fuel Type Natural
- Pilot Gas Outlet 1/4 Inch Compression
- Pressure Tapping Size 1/8 Inch Threaded with Plug
- Pressure Regulator Setting Point 3.5 Inch WC
- Flow Capacity 30000 to 415000 BTU / Hour
