Description

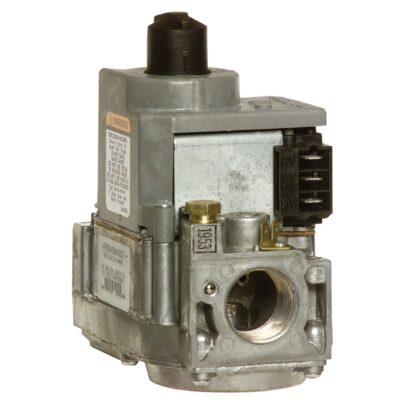

- Gas Valve
- Type Universal Electronic / Direct / Intermittent Pilot Operated, 1-Stage, Straight-Through
- Port Connection 3/4 Inch Compression x 3/4 Inch Compression
- Input Supply Rating 24 Volt AC at 50/60 Hertz
- Temperature Rating -40 to 175 Deg F
- Pressure Rating 1/2 PSI
- Mounting Details 0 to 90 Degree in any Direction from Upright Position of Gas Control Knob, Including Vertically
- Media Handled Gas
- Inclusions / Features (2) 3/4 Inch x 1/2 Inch Reducer Bushing, Natural to Liquid Propane Conversion Kit, Standard Opening, Manual Valve, (2) Automatic Operator, Pressure Regulator, Pilot Adjustment, Pilot Plug and Ignition Adapter, Low Voltage
- Application Residential Gas Fired Appliance
- Applicable Standard UL, CSA
- Overall Dimension 4-1/16 Inch Width x 2-11/16 Inch Depth x 5-3/8 Inch Height
- Pressure Regulator Setting 3.5 Inch WC
- Pressure Tapping Size 1/8 Inch Threaded with Plug
- Flow Capacity 30 to 415 CFH
- Electrical Connection 1/4 Inch Quick Connect Male Terminal
