Description

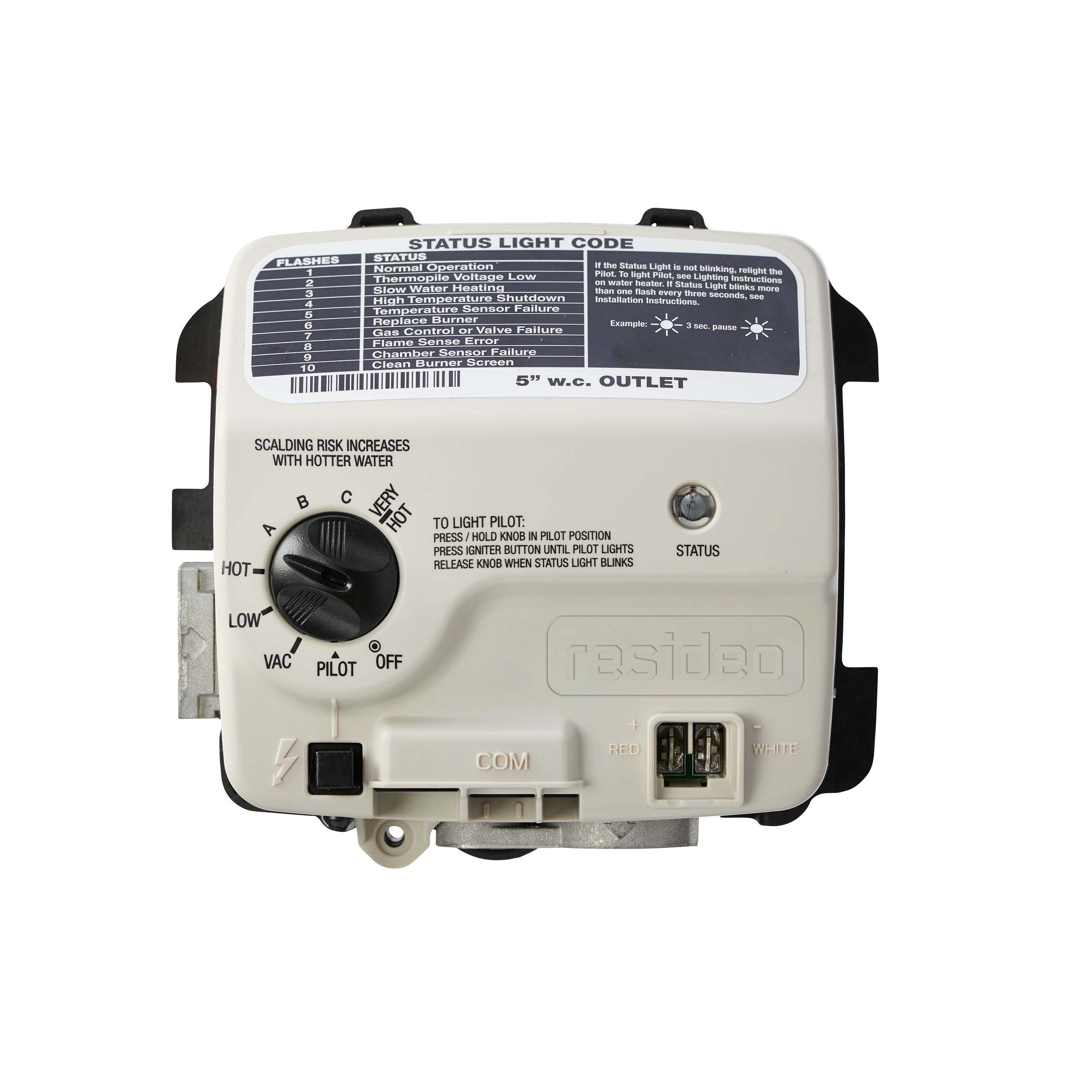

- Water Heater Control
- Item Water Heater Control
- Type 90 Degree
- Port Connection 1/2 Inch Threaded x 1/2 Inch Inverted Flare
- Input Supply Rating 350 to 850 Millivolt DC
- Temperature Rating 0 to 150 Deg F
- Pressure Rating 5 Inch WC
- Media Handled Gas
- Inclusions / Features Integrated NTC Temperature Sensor
- Application Water Heater
- Applicable Standard CSA 6.20/4.6, CAN / CSA C22.2, ANSI Z21.20 / Z21.23 / Z21.78 / Z21.87
- Tank Insulation Size 1 Inch
- Ambient Temperature 32 to 150 Deg F, -40 to 150 Deg F (Storage), 55 Deg F to 155 Deg F Valve (Set Point)
- Mounting Position Upright
- Capacity 30 Foot per 3 Hour to 75 Foot per 3 Hour
- Humidity 95 Percent (Non-Condensing) at 104 Deg F
